Definition Type: ComplexType
Name: HazardType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract
Documentation:
Definition of a Hazard

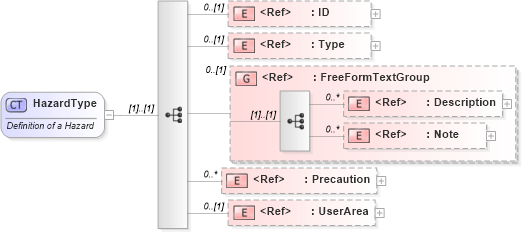

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into Precaution in schema components_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into Type in schema fields_xsd1 Drilldown into ID in schema fields_xsd1XSD Diagram of HazardType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="HazardType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">Definition of a Hazard </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/platform/1">Is the identifier of the Hazard</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Type" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/platform/1">This is a grouping of the Hazard Id into different types</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="FreeFormTextGroup" minOccurs="0" />
        <xsd:element ref="Precaution" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oa:ID 0 (1)
Type oa:Type 0 (1)
Description oa:Description 0 unbounded
Note oa:Note 0 unbounded
Precaution oa:Precaution 0 unbounded
UserArea oa:UserArea 0 (1)
<xs:group> oa:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:Hazard
