Docs for schema item HeaderType in HR-XML

Documentation for HR-XML - Human Resources XML

Definition Type:	ComplexType
Name:	HeaderType
Namespace:	http://www.openapplications.org/oagis/9
Containing Schema:	Components.xsd
Abstract	True
Documentation:	The abstract Header type that is the basis for all non-statusable OAGIS Document Headers

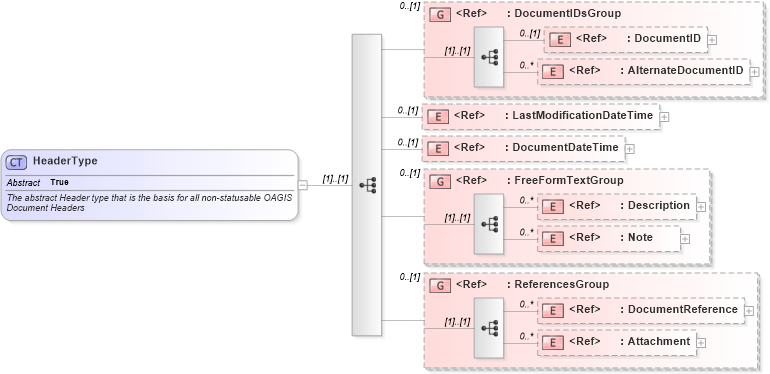

XSD Schema Diagram:

XSD Diagram of HeaderType in schema components_xsd1 (HR-XML - Human Resources XML)

XSD Schema Code:

<xsd:complexType name="HeaderType" abstract="true">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">The abstract Header type that is the basis for all non-statusable OAGIS Document Headers</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="DocumentIDsGroup" minOccurs="0" />
        <xsd:element ref="LastModificationDateTime" minOccurs="0" />
        <xsd:element ref="DocumentDateTime" minOccurs="0" />
        <xsd:group ref="FreeFormTextGroup" minOccurs="0" />
        <xsd:group ref="ReferencesGroup" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
DocumentID	oa:DocumentID	0	(1)
AlternateDocumentID	oa:AlternateDocumentID	0	unbounded
LastModificationDateTime	oa:LastModificationDateTime	0	(1)
DocumentDateTime	oa:DocumentDateTime	0	(1)
Description	oa:Description	0	unbounded
Note	oa:Note	0	unbounded
DocumentReference	oa:DocumentReference	0	unbounded
Attachment	oa:Attachment	0	unbounded
<xs:group>	oa:DocumentIDsGroup	0	(1)
<xs:group>	oa:FreeFormTextGroup	0	(1)
<xs:group>	oa:ReferencesGroup	0	(1)
