Definition Type: ComplexType
Name: IDCardType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

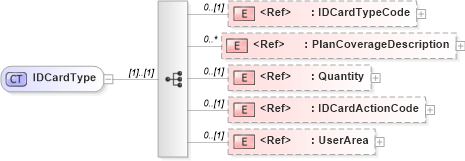

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into IDCardActionCode in schema fields_xsd Drilldown into Quantity in schema fields_xsd1 Drilldown into PlanCoverageDescription in schema fields_xsd Drilldown into IDCardTypeCode in schema fields_xsdXSD Diagram of IDCardType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="IDCardType">
    <xsd:sequence>
        <xsd:element ref="IDCardTypeCode" minOccurs="0" />
        <xsd:element ref="PlanCoverageDescription" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="oa:Quantity" minOccurs="0" />
        <xsd:element ref="IDCardActionCode" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IDCardTypeCode nsA:IDCardTypeCode 0 (1)
PlanCoverageDescription nsA:PlanCoverageDescription 0 unbounded
Quantity oa:Quantity 0 (1)
IDCardActionCode nsA:IDCardActionCode 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:IDCard
