Definition Type: ComplexType
Name: InstructionForFirstAgent
Namespace: urn:swift:xsd:$pain.001.001.01
Containing Schema: $pain.001.001.01.xsd
Abstract

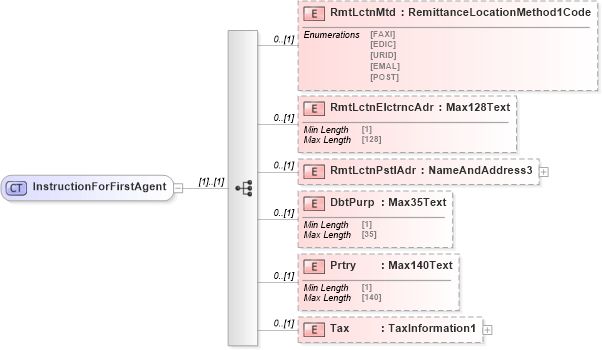

Collapse XSD Schema Diagram:
Drilldown into Tax in schema $pain_001_001_01_xsd Drilldown into Prtry in schema $pain_001_001_01_xsd Drilldown into DbtPurp in schema $pain_001_001_01_xsd Drilldown into RmtLctnPstlAdr in schema $pain_001_001_01_xsd Drilldown into RmtLctnElctrncAdr in schema $pain_001_001_01_xsd Drilldown into RmtLctnMtd in schema $pain_001_001_01_xsdXSD Diagram of InstructionForFirstAgent in schema $pain_001_001_01_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xs:complexType name="InstructionForFirstAgent">
    <xs:sequence>
        <xs:element name="RmtLctnMtd" type="RemittanceLocationMethod1Code" minOccurs="0" />
        <xs:element name="RmtLctnElctrncAdr" type="Max128Text" minOccurs="0" />
        <xs:element name="RmtLctnPstlAdr" type="NameAndAddress3" minOccurs="0" />
        <xs:element name="DbtPurp" type="Max35Text" minOccurs="0" />
        <xs:element name="Prtry" type="Max140Text" minOccurs="0" />
        <xs:element name="Tax" type="TaxInformation1" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RmtLctnMtd nsB:RmtLctnMtd 0 (1)
RmtLctnElctrncAdr nsB:RmtLctnElctrncAdr 0 (1)
RmtLctnPstlAdr nsB:RmtLctnPstlAdr 0 (1)
DbtPurp nsB:DbtPurp 0 (1)
Prtry nsB:Prtry 0 (1)
Tax nsB:Tax 0 (1)
Collapse Derivation Tree:
Collapse References:
nsB:InstrForFrstAgt
