Documentation for HR-XML - Human Resources XML
Definition Type: Group
Name: InventoryTransactionGroup
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd

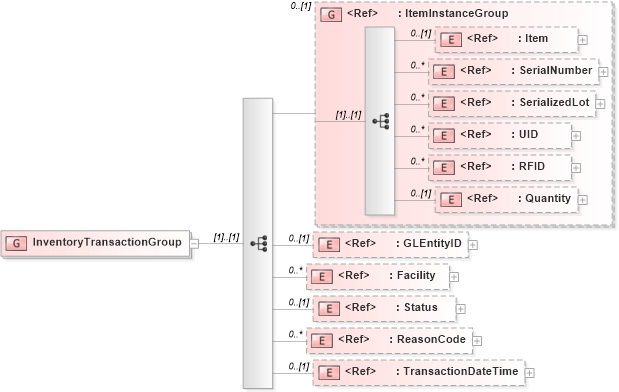

Collapse XSD Schema Diagram:
Drilldown into TransactionDateTime in schema fields_xsd1 Drilldown into ReasonCode in schema fields_xsd1 Drilldown into Status in schema components_xsd1 Drilldown into Facility in schema components_xsd1 Drilldown into GLEntityID in schema fields_xsd1 Drilldown into Quantity in schema fields_xsd1 Drilldown into RFID in schema fields_xsd1 Drilldown into UID in schema fields_xsd1 Drilldown into SerializedLot in schema components_xsd1 Drilldown into SerialNumber in schema fields_xsd1 Drilldown into Item in schema components_xsd1 Drilldown into ItemInstanceGroup in schema components_xsd1XSD Diagram of InventoryTransactionGroup in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:group name="InventoryTransactionGroup">
    <xsd:sequence>
        <xsd:group ref="ItemInstanceGroup" minOccurs="0" />
        <xsd:element ref="GLEntityID" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/platform/1">Idenitifies GLEntity owns the item and takes the credit or debit for the item on the balance sheet.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Facility" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Status" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/platform/1">This determines the receipt routing of an item or part.

Examples of values include:
Customer consignment, Inspection, Vendor consignment, Blocked
Bonded, User defined

Possible synonyms are
Receipt Routing, Material Status, Material Condition Code</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ReasonCode" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/platform/1">Identifies the reason for the transaction.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="TransactionDateTime" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/platform/1">Identifies the DateTime  at which the inventory transaction was carried out</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Item oa:Item 0 (1)
SerialNumber oa:SerialNumber 0 unbounded
SerializedLot oa:SerializedLot 0 unbounded
UID oa:UID 0 unbounded
RFID oa:RFID 0 unbounded
Quantity oa:Quantity 0 (1)
GLEntityID oa:GLEntityID 0 (1)
Facility oa:Facility 0 unbounded
Status oa:Status 0 (1)
ReasonCode oa:ReasonCode 0 unbounded
TransactionDateTime oa:TransactionDateTime 0 (1)
<xs:group> oa:ItemInstanceGroup 0 (1)
