Definition Type: ComplexType
Name: ItemSubLineType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: LogisticsComponents.xsd
Abstract

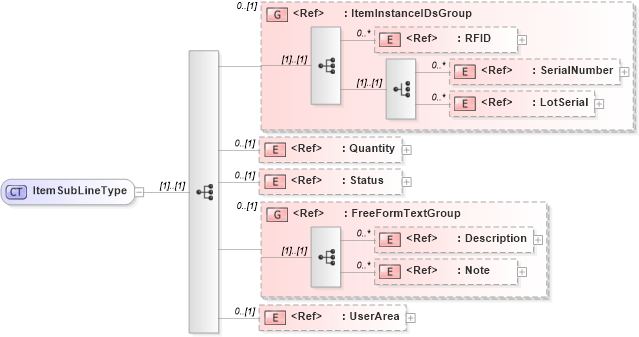

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into Status in schema components_xsd1 Drilldown into Quantity in schema fields_xsd1 Drilldown into LotSerial in schema components_xsd1 Drilldown into SerialNumber in schema fields_xsd1 Drilldown into RFID in schema fields_xsd1 Drilldown into ItemInstanceIDsGroup in schema components_xsd1XSD Diagram of ItemSubLineType in schema logisticscomponents_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ItemSubLineType">
    <xsd:sequence>
        <xsd:group ref="ItemInstanceIDsGroup" minOccurs="0" />
        <xsd:element ref="Quantity" minOccurs="0" />
        <xsd:element ref="Status" minOccurs="0" />
        <xsd:group ref="FreeFormTextGroup" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RFID oa:RFID 0 unbounded
SerialNumber oa:SerialNumber 0 unbounded
LotSerial oa:LotSerial 0 unbounded
Quantity oa:Quantity 0 (1)
Status oa:Status 0 (1)
Description oa:Description 0 unbounded
Note oa:Note 0 unbounded
UserArea oa:UserArea 0 (1)
<xs:group> oa:ItemInstanceIDsGroup 0 (1)
<xs:group> oa:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:ItemSubLine
