Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: NotifyCompetencyDefinitionsType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: NotifyCompetencyDefinitions.xsd
Abstract
Documentation:
NotifyCompetencyDefinitions is used to inform the receiving party that an event related to a CompetencyDefinitions has occurred or a CompetencyDefinitions has been created or modified. CompetencyDefinitions Contains structured information about the semantics associated with a one or more competencies. A Reusable Competency Definition (RCD) is reusable in that it is without a specific context. In other words, it is a definition of a competency not yet associated with a person profile, position, or learning object. Notify is a "Action Verb". ActionExpression(s) represent and communicate data management instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete, Replace) specifies the action taken. The data entities being managed are represented as elements of the CompetencyDefinitions noun in the BOD instance.

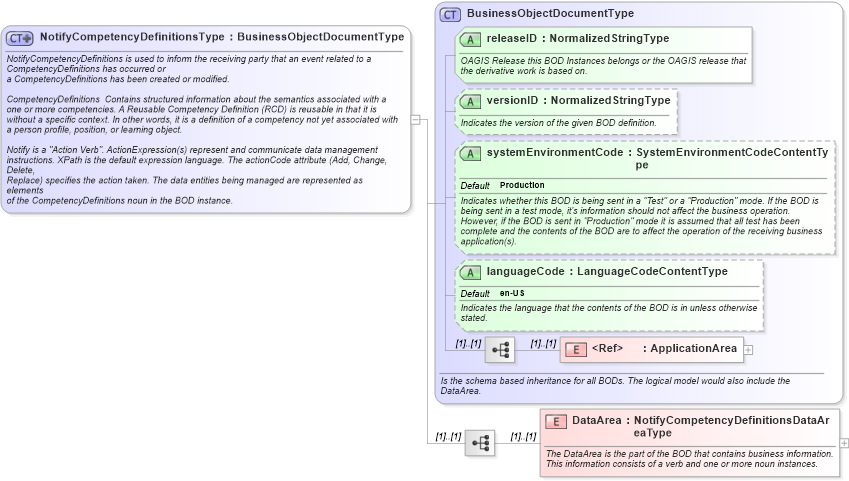

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifycompetencydefinitions_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of NotifyCompetencyDefinitionsType in schema notifycompetencydefinitions_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="NotifyCompetencyDefinitionsType">
    <xsd:annotation>
        <xsd:documentation>
       NotifyCompetencyDefinitions is used to inform the receiving party that an event related to a CompetencyDefinitions has occurred or
       a CompetencyDefinitions has been created or modified.

       CompetencyDefinitions  Contains structured information about the semantics associated with a one or more competencies. A Reusable Competency Definition (RCD) is reusable in that it is without a specific context. In other words, it is a definition of a competency not yet associated with a person profile, position, or learning object.

       Notify is a "Action Verb". ActionExpression(s) represent and communicate data management
       instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete,
       Replace) specifies the action taken. The data entities being managed are represented as elements
       of the CompetencyDefinitions noun in the BOD instance.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="NotifyCompetencyDefinitionsDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances. </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:NotifyCompetencyDefinitions
