Definition Type: ComplexType
Name: NotifyOrganizationChartType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: NotifyOrganizationChart.xsd
Abstract
Documentation:
NotifyOrganizationChart is used to inform the receiving party that an event related to a OrganizationChart has occurred or a OrganizationChart has been created or modified. OrganizationChart Provides a simple, "open model" structure for communicating basic information about an organization, its sub-entities or "organization units," the positions within those units, and the incumbents within those positions. The schema design is "flat" versus recursive in design, but hierarchy and reporting relationships can be expressed. Notify is a "Action Verb". ActionExpression(s) represent and communicate data management instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete, Replace) specifies the action taken. The data entities being managed are represented as elements of the OrganizationChart noun in the BOD instance.

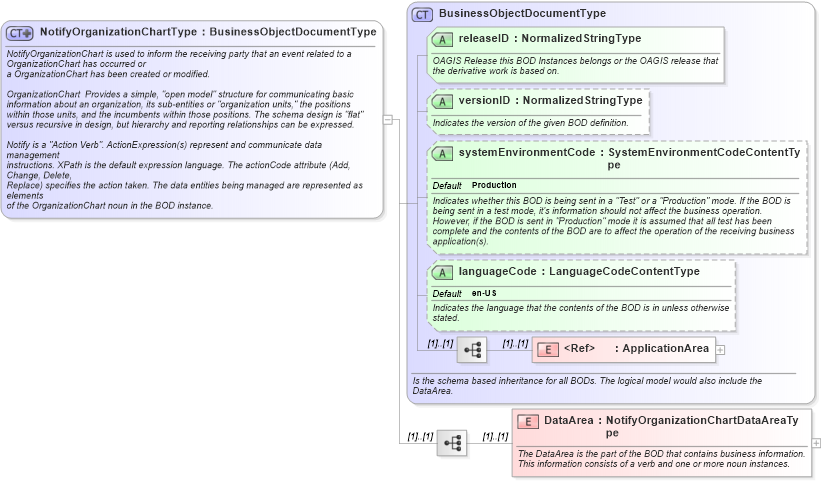

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifyorganizationchart_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of NotifyOrganizationChartType in schema notifyorganizationchart_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="NotifyOrganizationChartType">
    <xsd:annotation>
        <xsd:documentation>
       NotifyOrganizationChart is used to inform the receiving party that an event related to a OrganizationChart has occurred or
       a OrganizationChart has been created or modified.

       OrganizationChart  Provides a simple, "open model" structure for communicating basic information about an organization, its sub-entities or "organization units," the positions within those units, and the incumbents within those positions. The schema design is "flat" versus recursive in design, but hierarchy and reporting relationships can be expressed.

       Notify is a "Action Verb". ActionExpression(s) represent and communicate data management
       instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete,
       Replace) specifies the action taken. The data entities being managed are represented as elements
       of the OrganizationChart noun in the BOD instance.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="NotifyOrganizationChartDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances. </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:NotifyOrganizationChart
