Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: NotifySavingsPlanEnrollmentType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: NotifySavingsPlanEnrollment.xsd
Abstract
Documentation:
NotifySavingsPlanEnrollment is used to inform the receiving party that an event related to a SavingsPlanEnrollment has occurred or a SavingsPlanEnrollment has been created or modified. SavingsPlanEnrollment Intended to support the communication of enrollment and election information for savings and defined contribution plans, such a 401(k) plans within the U.S. market. Notify is a "Action Verb". ActionExpression(s) represent and communicate data management instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete, Replace) specifies the action taken. The data entities being managed are represented as elements of the SavingsPlanEnrollment noun in the BOD instance.

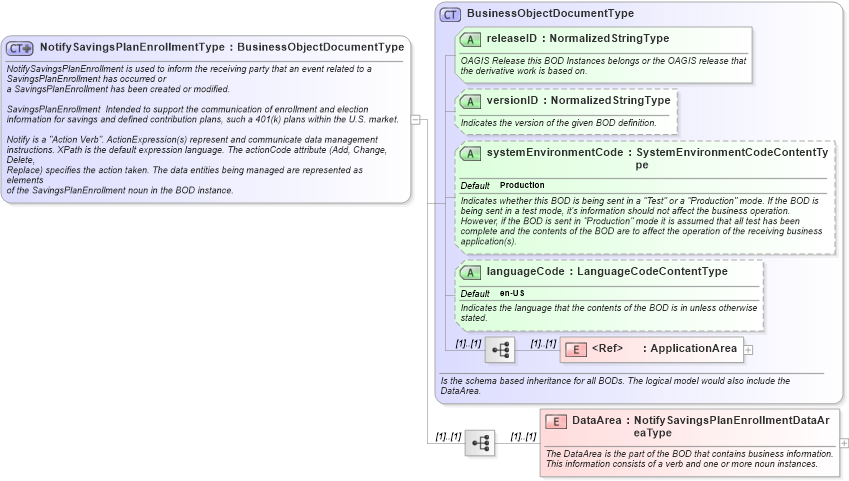

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifysavingsplanenrollment_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of NotifySavingsPlanEnrollmentType in schema notifysavingsplanenrollment_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="NotifySavingsPlanEnrollmentType">
    <xsd:annotation>
        <xsd:documentation>
       NotifySavingsPlanEnrollment is used to inform the receiving party that an event related to a SavingsPlanEnrollment has occurred or
       a SavingsPlanEnrollment has been created or modified.

       SavingsPlanEnrollment  Intended to support the communication of enrollment and election information for savings and defined contribution plans, such a 401(k) plans within the U.S. market.

       Notify is a "Action Verb". ActionExpression(s) represent and communicate data management
       instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete,
       Replace) specifies the action taken. The data entities being managed are represented as elements
       of the SavingsPlanEnrollment noun in the BOD instance.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="NotifySavingsPlanEnrollmentDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances. </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:NotifySavingsPlanEnrollment
