Definition Type: ComplexType
Name: NotifyScreeningPackageReportType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: NotifyScreeningPackageReport.xsd
Abstract
Documentation:
NotifyScreeningPackageReport is used to inform the receiving party that an event related to a ScreeningPackageReport has occurred or a ScreeningPackageReport has been created or modified. ScreeningPackageReport Contains a set of data fulfilling or relating to an employment screening order. ScreeningPackageReport is a subset of the full ScreeningReport. It is intended to support a simple fulfillment scenario under which detailed, fielded results would not be returned, just summary information or an URL where the full report can be accessed. Notify is a "Action Verb". ActionExpression(s) represent and communicate data management instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete, Replace) specifies the action taken. The data entities being managed are represented as elements of the ScreeningPackageReport noun in the BOD instance.

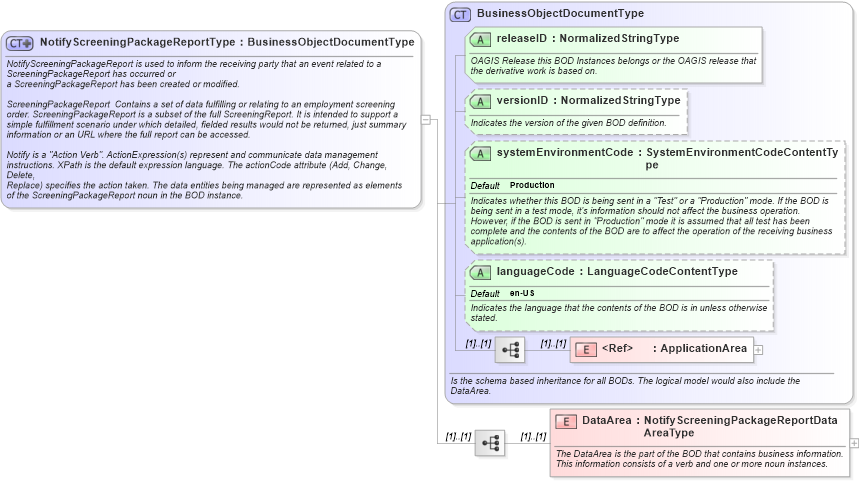

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifyscreeningpackagereport_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of NotifyScreeningPackageReportType in schema notifyscreeningpackagereport_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="NotifyScreeningPackageReportType">
    <xsd:annotation>
        <xsd:documentation>
       NotifyScreeningPackageReport is used to inform the receiving party that an event related to a ScreeningPackageReport has occurred or
       a ScreeningPackageReport has been created or modified.

       ScreeningPackageReport  Contains a set of data fulfilling or relating to an employment screening order. ScreeningPackageReport is a subset of the full ScreeningReport. It is intended to support a simple fulfillment scenario under which detailed, fielded results would not be returned, just summary information or an URL where the full report can be accessed.

       Notify is a "Action Verb". ActionExpression(s) represent and communicate data management
       instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete,
       Replace) specifies the action taken. The data entities being managed are represented as elements
       of the ScreeningPackageReport noun in the BOD instance.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="NotifyScreeningPackageReportDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances. </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:NotifyScreeningPackageReport
