Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: NotifyStockOptionGrantType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: NotifyStockOptionGrant.xsd
Abstract
Documentation:
NotifyStockOptionGrant is used to inform the receiving party that an event related to a StockOptionGrant has occurred or a StockOptionGrant has been created or modified. StockOptionGrant Contains a collection of information relating to the award to individual of an an option to purchase shares of company stock. Notify is a "Action Verb". ActionExpression(s) represent and communicate data management instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete, Replace) specifies the action taken. The data entities being managed are represented as elements of the StockOptionGrant noun in the BOD instance.
Collapse XSD Schema Diagram:

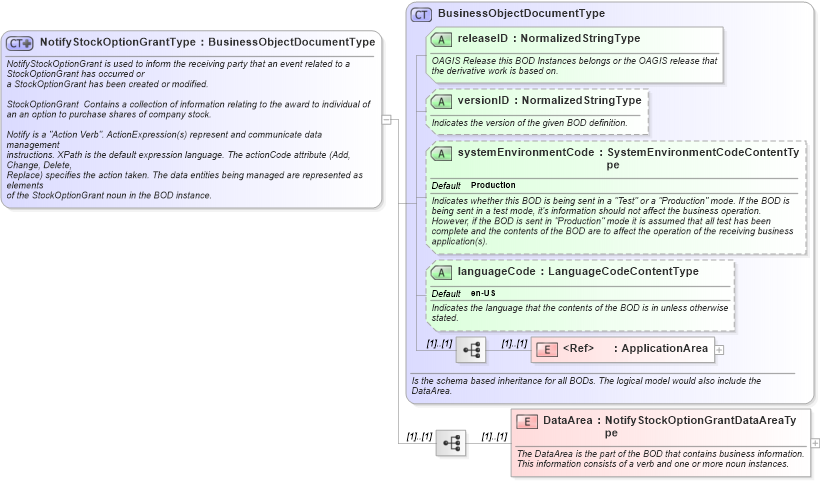

Drilldown into DataArea in schema notifystockoptiongrant_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of NotifyStockOptionGrantType in schema notifystockoptiongrant_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="NotifyStockOptionGrantType">
    <xsd:annotation>
        <xsd:documentation>
       NotifyStockOptionGrant is used to inform the receiving party that an event related to a StockOptionGrant has occurred or
       a StockOptionGrant has been created or modified.

       StockOptionGrant  Contains a collection of information relating to the award to individual of an an option to purchase shares of company stock.

       Notify is a "Action Verb". ActionExpression(s) represent and communicate data management
       instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete,
       Replace) specifies the action taken. The data entities being managed are represented as elements
       of the StockOptionGrant noun in the BOD instance.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="NotifyStockOptionGrantDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances. </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:NotifyStockOptionGrant
