Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: NotifyStockPlanType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: NotifyStockPlan.xsd
Abstract
Documentation:
NotifyStockPlan is used to inform the receiving party that an event related to a StockPlan has occurred or a StockPlan has been created or modified. StockPlan Contains a collection of information to relevant to create and maintaining employee stock plan records. Supported plans are Stock Option, Stock Purchase Plans, and Stock Awards. Notify is a "Action Verb". ActionExpression(s) represent and communicate data management instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete, Replace) specifies the action taken. The data entities being managed are represented as elements of the StockPlan noun in the BOD instance.

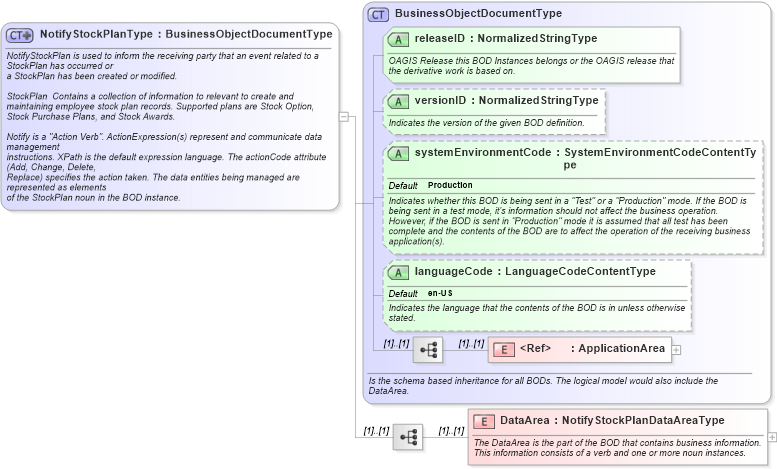

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema notifystockplan_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of NotifyStockPlanType in schema notifystockplan_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="NotifyStockPlanType">
    <xsd:annotation>
        <xsd:documentation>
       NotifyStockPlan is used to inform the receiving party that an event related to a StockPlan has occurred or
       a StockPlan has been created or modified.

       StockPlan  Contains a collection of information to relevant to create and maintaining employee stock plan records. Supported plans are Stock Option, Stock Purchase Plans, and Stock Awards.

       Notify is a "Action Verb". ActionExpression(s) represent and communicate data management
       instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete,
       Replace) specifies the action taken. The data entities being managed are represented as elements
       of the StockPlan noun in the BOD instance.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="NotifyStockPlanDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances. </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:NotifyStockPlan
