Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: OfferedRemunerationPackageType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
ABIE Offered_ RemunerationPackage. Details Terms offered or agreed regarding remuneration for a position. May include pay as well as benefits in-kind.

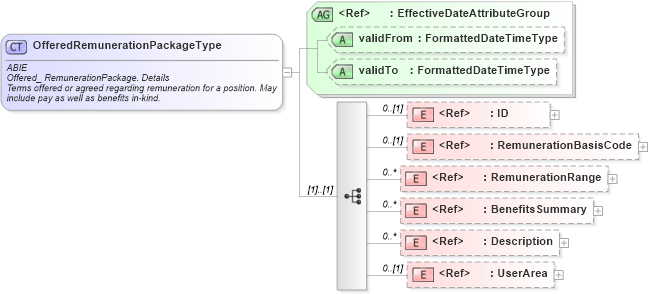

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Description in schema fields_xsd1 Drilldown into BenefitsSummary in schema components_xsd Drilldown into RemunerationRange in schema components_xsd Drilldown into RemunerationBasisCode in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of OfferedRemunerationPackageType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="OfferedRemunerationPackageType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">ABIE</ccts:CategoryCode>
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Offered_ RemunerationPackage. Details</ccts:DictionaryEntryName>
            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Terms offered or agreed regarding remuneration for a position. May include pay as well as benefits in-kind.</ccts:Definition>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="RemunerationBasisCode" minOccurs="0" />
        <xsd:element ref="RemunerationRange" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BenefitsSummary" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="oa:Description" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
RemunerationBasisCode nsA:RemunerationBasisCode 0 (1)
RemunerationRange nsA:RemunerationRange 0 unbounded
BenefitsSummary nsA:BenefitsSummary 0 unbounded
Description oa:Description 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:OfferedRemunerationPackage
