Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: OrganizationAffiliationsType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Organization Affiliations. Details Contains details on one or more organization affiliations. For example, membership in a trade or civic organization, seat on an organization's board of directors, membership in a union, etc.

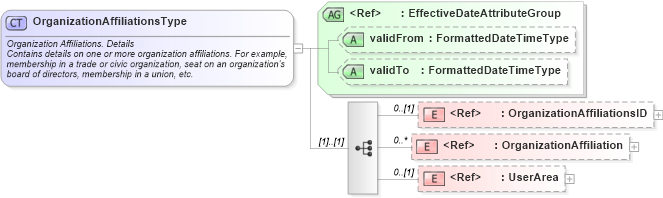

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into OrganizationAffiliation in schema components_xsd Drilldown into OrganizationAffiliationsID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of OrganizationAffiliationsType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="OrganizationAffiliationsType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Organization Affiliations. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Contains details on one or more organization affiliations. For example, membership in a trade or civic organization, seat on an organization's board of directors, membership in a union, etc.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="OrganizationAffiliationsID" minOccurs="0" />
        <xsd:element ref="OrganizationAffiliation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrganizationAffiliationsID nsA:OrganizationAffiliationsID 0 (1)
OrganizationAffiliation nsA:OrganizationAffiliation 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:OrganizationAffiliations
