Definition Type: ComplexType
Name: OrganizationalIdentifiersType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

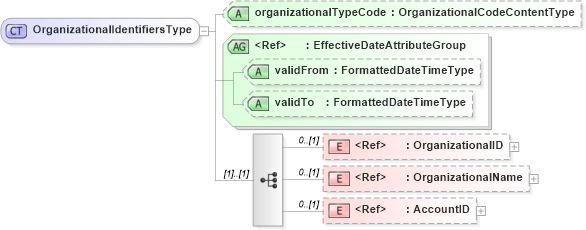

Collapse XSD Schema Diagram:
Drilldown into AccountID in schema fields_xsd Drilldown into OrganizationalName in schema fields_xsd Drilldown into OrganizationalID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into organizationalTypeCode in schema components_xsdXSD Diagram of OrganizationalIdentifiersType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="OrganizationalIdentifiersType">
    <xsd:sequence>
        <xsd:element ref="OrganizationalID" minOccurs="0" />
        <xsd:element ref="OrganizationalName" minOccurs="0" />
        <xsd:element ref="AccountID" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="organizationalTypeCode" type="OrganizationalCodeContentType" />
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrganizationalID nsA:OrganizationalID 0 (1)
OrganizationalName nsA:OrganizationalName 0 (1)
AccountID nsA:AccountID 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
organizationalTypeCode nsA:organizationalTypeCode (Optional)
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:OrganizationalIdentifiers
