Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: OriginalApplicationArea
Namespace: http://www.openapplications.org/oagis/9
Type: oa:ApplicationAreaType
Containing Schema: Meta.xsd
Abstract
Documentation:
A copy of the ApplicationArea for the original BOD that was processed. Present either as additional reference information, or for use in identifying the BOD in situations where a BODReference is not known.

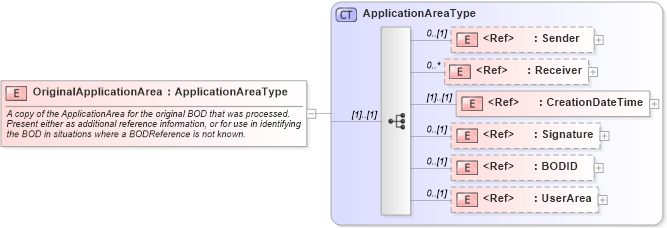

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into BODID in schema meta_xsd Drilldown into Signature in schema meta_xsd Drilldown into CreationDateTime in schema meta_xsd Drilldown into Receiver in schema meta_xsd Drilldown into Sender in schema meta_xsd Drilldown into ApplicationAreaType in schema meta_xsdXSD Diagram of OriginalApplicationArea in schema meta_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="OriginalApplicationArea" type="ApplicationAreaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">A copy of the ApplicationArea for the original BOD that was processed. Present either as additional reference information, or for use in identifying the BOD in situations where a BODReference is not known.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Sender oa:Sender 0 (1)
Receiver oa:Receiver 0 unbounded
CreationDateTime oa:CreationDateTime (1) (1)
Signature oa:Signature 0 (1)
BODID oa:BODID 0 (1)
UserArea oa:UserArea 0 (1)
Collapse Derivation Tree:
