Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: OutQueueLocation
Namespace: http://www.openapplications.org/oagis/9
Type: oa:LocationType
Containing Schema: Components.xsd
Abstract
Documentation:
Is the location that the associated entity places the material from. In the case of an Operation is the location that the Operation its resulting materials. In order to produce the specified widget the widgets will be placed in the is location.

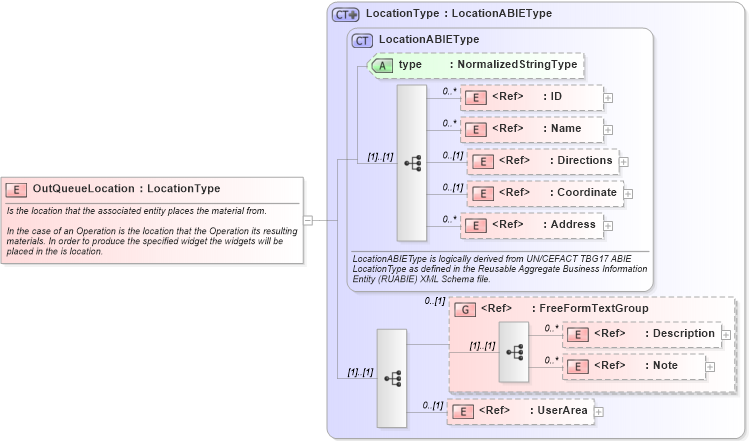

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into Address in schema components_xsd1 Drilldown into Coordinate in schema components_xsd1 Drilldown into Directions in schema fields_xsd1 Drilldown into Name in schema fields_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into type in schema components_xsd1 Drilldown into LocationABIEType in schema components_xsd1 Drilldown into LocationType in schema components_xsd1XSD Diagram of OutQueueLocation in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="OutQueueLocation" type="LocationType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">Is the location that the associated entity places the material from.

In the case of an Operation is the location that the Operation its resulting materials. In order to produce the specified widget the widgets will be placed in the is location.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oa:ID 0 unbounded
Name oa:Name 0 unbounded
Directions oa:Directions 0 (1)
Coordinate oa:Coordinate 0 (1)
Address oa:Address 0 unbounded
Description oa:Description 0 unbounded
Note oa:Note 0 unbounded
UserArea oa:UserArea 0 (1)
<xs:group> oa:FreeFormTextGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type oa:type (Optional)
Collapse Derivation Tree:
