Definition Type: ComplexType
Name: PayCycleRemunerationType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

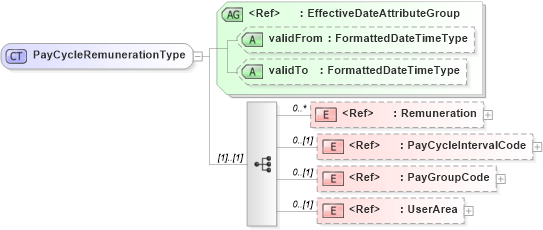

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into PayGroupCode in schema fields_xsd Drilldown into PayCycleIntervalCode in schema fields_xsd Drilldown into Remuneration in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of PayCycleRemunerationType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="PayCycleRemunerationType">
    <xsd:sequence>
        <xsd:element ref="Remuneration" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PayCycleIntervalCode" minOccurs="0" />
        <xsd:element ref="PayGroupCode" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Remuneration nsA:Remuneration 0 unbounded
PayCycleIntervalCode nsA:PayCycleIntervalCode 0 (1)
PayGroupCode nsA:PayGroupCode 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:PayCycleRemuneration
