Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: PositionOrganizationType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
ABIE Position Organization. Details Contains details about the organization at which the position is to be filled or the organization advertising such position..

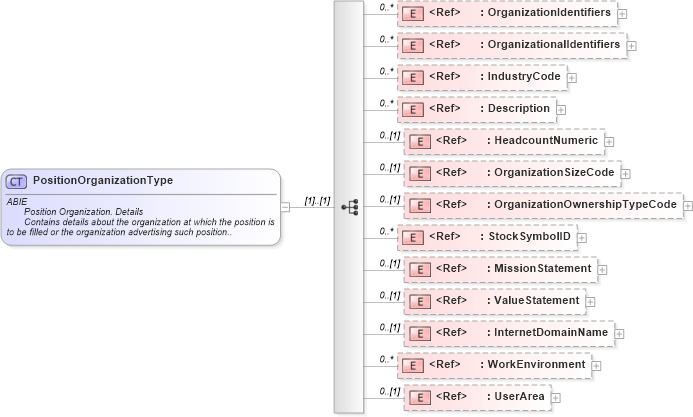

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into WorkEnvironment in schema components_xsd Drilldown into InternetDomainName in schema fields_xsd Drilldown into ValueStatement in schema fields_xsd Drilldown into MissionStatement in schema fields_xsd Drilldown into StockSymbolID in schema fields_xsd Drilldown into OrganizationOwnershipTypeCode in schema fields_xsd Drilldown into OrganizationSizeCode in schema fields_xsd Drilldown into HeadcountNumeric in schema fields_xsd Drilldown into Description in schema fields_xsd1 Drilldown into IndustryCode in schema fields_xsd Drilldown into OrganizationalIdentifiers in schema components_xsd Drilldown into OrganizationIdentifiers in schema components_xsdXSD Diagram of PositionOrganizationType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="PositionOrganizationType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">ABIE</ccts:CategoryCode>
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Position Organization. Details</ccts:DictionaryEntryName>
            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Contains details about the organization at which the position is
         to be filled or the organization advertising such position..</ccts:Definition>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="OrganizationIdentifiers" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OrganizationalIdentifiers" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="IndustryCode" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="oa:Description" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="HeadcountNumeric" minOccurs="0" />
        <xsd:element ref="OrganizationSizeCode" minOccurs="0" />
        <xsd:element ref="OrganizationOwnershipTypeCode" minOccurs="0" />
        <xsd:element ref="StockSymbolID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="MissionStatement" minOccurs="0" />
        <xsd:element ref="ValueStatement" minOccurs="0" />
        <xsd:element ref="InternetDomainName" minOccurs="0" />
        <xsd:element ref="WorkEnvironment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrganizationIdentifiers nsA:OrganizationIdentifiers 0 unbounded
OrganizationalIdentifiers nsA:OrganizationalIdentifiers 0 unbounded
IndustryCode nsA:IndustryCode 0 unbounded
Description oa:Description 0 unbounded
HeadcountNumeric nsA:HeadcountNumeric 0 (1)
OrganizationSizeCode nsA:OrganizationSizeCode 0 (1)
OrganizationOwnershipTypeCode nsA:OrganizationOwnershipTypeCode 0 (1)
StockSymbolID nsA:StockSymbolID 0 unbounded
MissionStatement nsA:MissionStatement 0 (1)
ValueStatement nsA:ValueStatement 0 (1)
InternetDomainName nsA:InternetDomainName 0 (1)
WorkEnvironment nsA:WorkEnvironment 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:PositionOrganization
