Definition Type: ComplexType
Name: PositionType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract

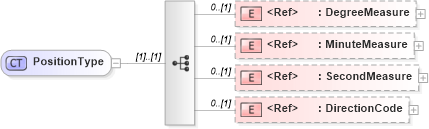

Collapse XSD Schema Diagram:
Drilldown into DirectionCode in schema fields_xsd1 Drilldown into SecondMeasure in schema fields_xsd1 Drilldown into MinuteMeasure in schema fields_xsd1 Drilldown into DegreeMeasure in schema fields_xsd1XSD Diagram of PositionType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="PositionType">
    <xsd:sequence>
        <xsd:element ref="DegreeMeasure" minOccurs="0" />
        <xsd:element ref="MinuteMeasure" minOccurs="0" />
        <xsd:element ref="SecondMeasure" minOccurs="0" />
        <xsd:element ref="DirectionCode" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DegreeMeasure oa:DegreeMeasure 0 (1)
MinuteMeasure oa:MinuteMeasure 0 (1)
SecondMeasure oa:SecondMeasure 0 (1)
DirectionCode oa:DirectionCode 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:Latitude, oa:Longitude
