Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ProcessAssessmentCatalogType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: ProcessAssessmentCatalog.xsd
Abstract
Documentation:
Used to request processing of the AssessmentCatalog noun by a receiving application or party. AssessmentCatalog Contains a set of information about assessment services or tests available to a customer. Enables the discovery of "Package IDs" which are necessary to place an order using HR-XML's assessment order specification. A "Package" may consist of one or more assessment instruments. An "assessment package" is the marketable unit of assessment or testing services that may be ordered. Process is an "Action Verb". ActionExpression(s) represent and communicate data management instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete, Replace) specifies the action to be taken by the receiver. The data entities being managed are represented as elements of the AssessmentCatalog noun in the BOD instance.

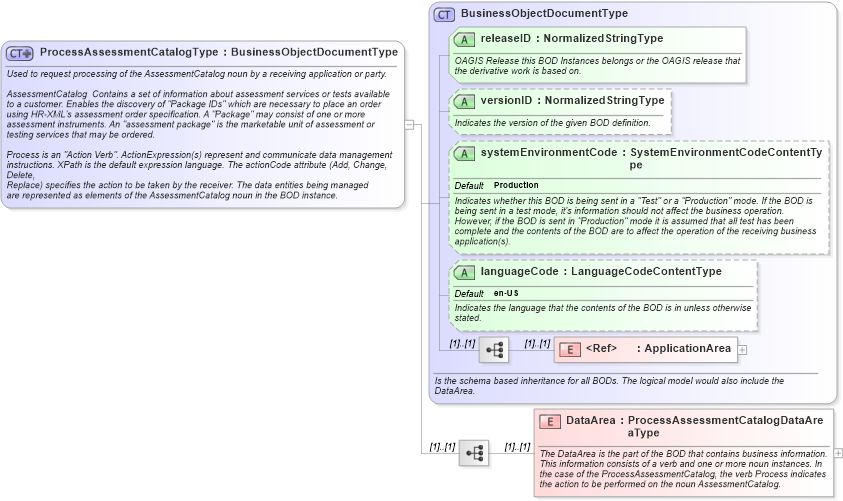

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema processassessmentcatalog_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of ProcessAssessmentCatalogType in schema processassessmentcatalog_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ProcessAssessmentCatalogType">
    <xsd:annotation>
        <xsd:documentation>
       Used to request processing of the AssessmentCatalog noun by a receiving application or party.

       AssessmentCatalog  Contains a set of information about assessment services or tests available to a customer. Enables the discovery of "Package IDs" which are necessary to place an order using HR-XML's assessment order specification. A "Package" may consist of one or more assessment instruments. An "assessment package" is the marketable unit of assessment or testing services that may be ordered.

       Process is an "Action Verb". ActionExpression(s) represent and communicate data management
       instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete,
       Replace) specifies the action to be taken by the receiver. The data entities being managed
       are represented as elements of the AssessmentCatalog noun in the BOD instance.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="ProcessAssessmentCatalogDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances. In the case of the ProcessAssessmentCatalog, the verb Process indicates the action to be performed on the noun AssessmentCatalog.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:ProcessAssessmentCatalog
