Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ProcessIndicativeDataType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: ProcessIndicativeData.xsd
Abstract
Documentation:
Used to request processing of the IndicativeData noun by a receiving application or party. IndicativeData Defines a set of data about the relationship between an employer and employee or former employee that is relevant to the provisioning of outsourced benefits and payroll systems. It is "indicative" data in that the target system has business rules and logic to administer the employee's compensation and/or benefits programs based on the data supplied. OED Indicative n. That points out, states, or declares; That indicates, points out, or directs; that hints or suggests; Furnishing indications of; suggestive of. Process is an "Action Verb". ActionExpression(s) represent and communicate data management instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete, Replace) specifies the action to be taken by the receiver. The data entities being managed are represented as elements of the IndicativeData noun in the BOD instance.

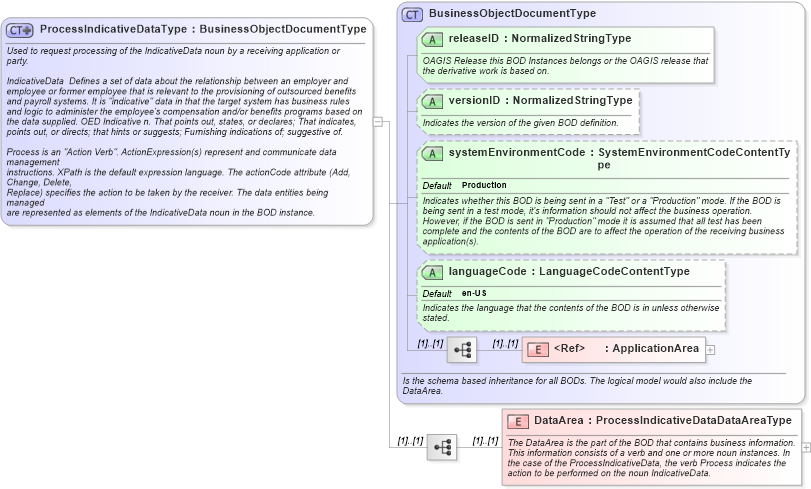

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema processindicativedata_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of ProcessIndicativeDataType in schema processindicativedata_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ProcessIndicativeDataType">
    <xsd:annotation>
        <xsd:documentation>
       Used to request processing of the IndicativeData noun by a receiving application or party.

       IndicativeData  Defines a set of data about the relationship between an employer and employee or former employee that is relevant to the provisioning of outsourced benefits and payroll systems. It is "indicative" data in that the target system has business rules and logic to administer the employee's compensation and/or benefits programs based on the data supplied. OED Indicative n. That points out, states, or declares; That indicates, points out, or directs; that hints or suggests; Furnishing indications of; suggestive of.

       Process is an "Action Verb". ActionExpression(s) represent and communicate data management
       instructions. XPath is the default expression language. The actionCode attribute (Add, Change, Delete,
       Replace) specifies the action to be taken by the receiver. The data entities being managed
       are represented as elements of the IndicativeData noun in the BOD instance.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="ProcessIndicativeDataDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances. In the case of the ProcessIndicativeData, the verb Process indicates the action to be performed on the noun IndicativeData.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:ProcessIndicativeData
