Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: PurchasingParty
Namespace: http://www.openapplications.org/oagis/9
Type: oa:CustomerPartyType
Containing Schema: Components.xsd
Abstract
Documentation:
Identifies the party that purchased the goods or services.

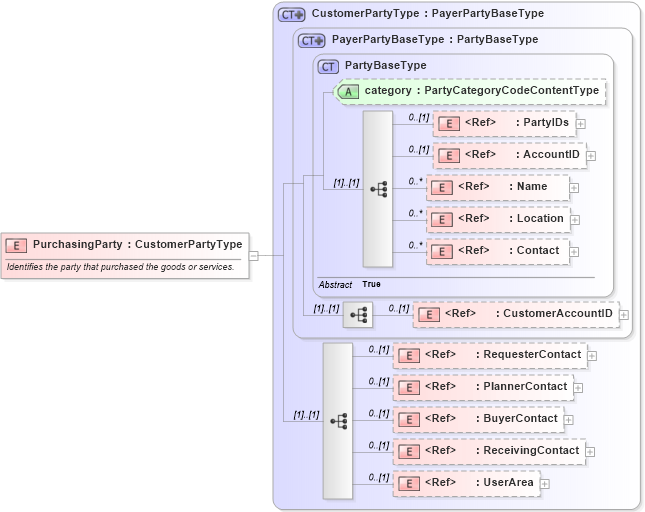

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into ReceivingContact in schema components_xsd1 Drilldown into BuyerContact in schema components_xsd1 Drilldown into PlannerContact in schema components_xsd1 Drilldown into RequesterContact in schema components_xsd1 Drilldown into CustomerAccountID in schema fields_xsd1 Drilldown into Contact in schema components_xsd1 Drilldown into Location in schema components_xsd1 Drilldown into Name in schema fields_xsd1 Drilldown into AccountID in schema fields_xsd1 Drilldown into PartyIDs in schema components_xsd1 Drilldown into category in schema components_xsd1 Drilldown into PartyBaseType in schema components_xsd1 Drilldown into PayerPartyBaseType in schema components_xsd1 Drilldown into CustomerPartyType in schema components_xsd1XSD Diagram of PurchasingParty in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="PurchasingParty" type="CustomerPartyType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">Identifies the party that purchased the goods or services.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyIDs oa:PartyIDs 0 (1)
AccountID oa:AccountID 0 (1)
Name oa:Name 0 unbounded
Location oa:Location 0 unbounded
Contact oa:Contact 0 unbounded
CustomerAccountID oa:CustomerAccountID 0 (1)
RequesterContact oa:RequesterContact 0 (1)
PlannerContact oa:PlannerContact 0 (1)
BuyerContact oa:BuyerContact 0 (1)
ReceivingContact oa:ReceivingContact 0 (1)
UserArea oa:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
category oa:category (Optional)
Collapse Derivation Tree:
