Definition Type: Element
Name: QualifiedResource
Namespace: http://www.openapplications.org/oagis/9
Type: oa:QualifiedResourceType
Containing Schema: ManufacturingComponents.xsd
Abstract
Documentation:
Information that describes the resources to perform the specified resource usage for the operation and/or the step that is defined by the preceding Operation or Step.

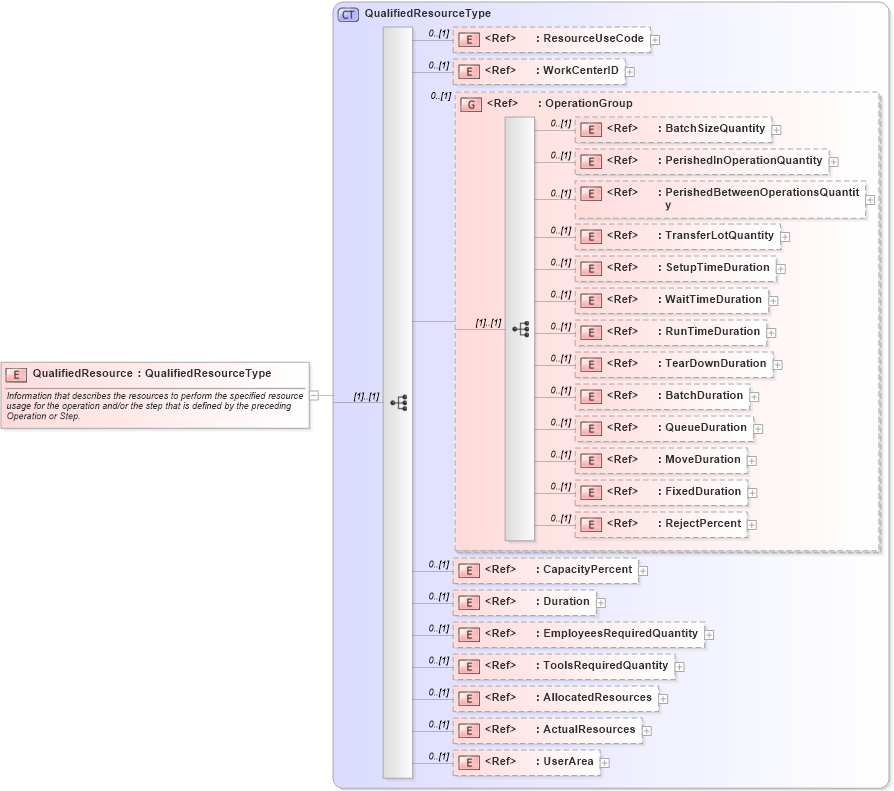

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into ActualResources in schema manufacturingcomponents_xsd Drilldown into AllocatedResources in schema manufacturingcomponents_xsd Drilldown into ToolsRequiredQuantity in schema fields_xsd1 Drilldown into EmployeesRequiredQuantity in schema fields_xsd1 Drilldown into Duration in schema fields_xsd1 Drilldown into CapacityPercent in schema fields_xsd1 Drilldown into RejectPercent in schema fields_xsd1 Drilldown into FixedDuration in schema fields_xsd1 Drilldown into MoveDuration in schema fields_xsd1 Drilldown into QueueDuration in schema fields_xsd1 Drilldown into BatchDuration in schema fields_xsd1 Drilldown into TearDownDuration in schema fields_xsd1 Drilldown into RunTimeDuration in schema fields_xsd1 Drilldown into WaitTimeDuration in schema fields_xsd1 Drilldown into SetupTimeDuration in schema fields_xsd1 Drilldown into TransferLotQuantity in schema fields_xsd1 Drilldown into PerishedBetweenOperationsQuantity in schema fields_xsd1 Drilldown into PerishedInOperationQuantity in schema fields_xsd1 Drilldown into BatchSizeQuantity in schema fields_xsd1 Drilldown into OperationGroup in schema manufacturingcomponents_xsd Drilldown into WorkCenterID in schema fields_xsd1 Drilldown into ResourceUseCode in schema fields_xsd1 Drilldown into QualifiedResourceType in schema manufacturingcomponents_xsdXSD Diagram of QualifiedResource in schema manufacturingcomponents_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="QualifiedResource" type="QualifiedResourceType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">Information that describes the resources to perform the specified resource usage for the operation and/or the step that is defined by the preceding Operation or Step.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ResourceUseCode oa:ResourceUseCode 0 (1)
WorkCenterID oa:WorkCenterID 0 (1)
BatchSizeQuantity oa:BatchSizeQuantity 0 (1)
PerishedInOperationQuantity oa:PerishedInOperationQuantity 0 (1)
PerishedBetweenOperationsQuantity oa:PerishedBetweenOperationsQuantity 0 (1)
TransferLotQuantity oa:TransferLotQuantity 0 (1)
SetupTimeDuration oa:SetupTimeDuration 0 (1)
WaitTimeDuration oa:WaitTimeDuration 0 (1)
RunTimeDuration oa:RunTimeDuration 0 (1)
TearDownDuration oa:TearDownDuration 0 (1)
BatchDuration oa:BatchDuration 0 (1)
QueueDuration oa:QueueDuration 0 (1)
MoveDuration oa:MoveDuration 0 (1)
FixedDuration oa:FixedDuration 0 (1)
RejectPercent oa:RejectPercent 0 (1)
CapacityPercent oa:CapacityPercent 0 (1)
Duration oa:Duration 0 (1)
EmployeesRequiredQuantity oa:EmployeesRequiredQuantity 0 (1)
ToolsRequiredQuantity oa:ToolsRequiredQuantity 0 (1)
AllocatedResources oa:AllocatedResources 0 (1)
ActualResources oa:ActualResources 0 (1)
UserArea oa:UserArea 0 (1)
<xs:group> oa:OperationGroup 0 (1)
Collapse Derivation Tree:
