Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: QuestionAnswerPairType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
ABIE Question Answer. Details A uniquely identifiable question and response or answer.
Collapse XSD Schema Diagram:

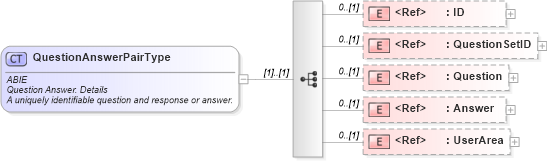

Drilldown into UserArea in schema fields_xsd Drilldown into Answer in schema fields_xsd Drilldown into Question in schema fields_xsd Drilldown into QuestionSetID in schema fields_xsd Drilldown into ID in schema fields_xsdXSD Diagram of QuestionAnswerPairType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="QuestionAnswerPairType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">ABIE</ccts:CategoryCode>
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Question Answer. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">A uniquely identifiable question and response or answer.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="QuestionSetID" minOccurs="0" />
        <xsd:element ref="Question" minOccurs="0" />
        <xsd:element ref="Answer" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
QuestionSetID nsA:QuestionSetID 0 (1)
Question nsA:Question 0 (1)
Answer nsA:Answer 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:QuestionAnswerPair
