Definition Type: Element
Name: ReferenceDesignatorID
Namespace: http://www.openapplications.org/oagis/9
Type: oa:SequencedIDType
Containing Schema: Fields.xsd
Abstract
Documentation:
Is the reference designator on a Drawing or BluePrint where the BOM is used. Is an identifier used to refer to an instance of the  Item (part number) in manufacturing instructions, engineering drawings and/or CAD models. ReferenceDesignator is also often known as an installation point. There will be a single distinct ReferenceDesignatorID for each instance of an Item, however multiple distinct ItemIDs could have the same ReferenceDesignatorID value within a BOM, such as for alternate parts or parts selected from a test-fit-and-select processes.
Collapse XSD Schema Diagram:

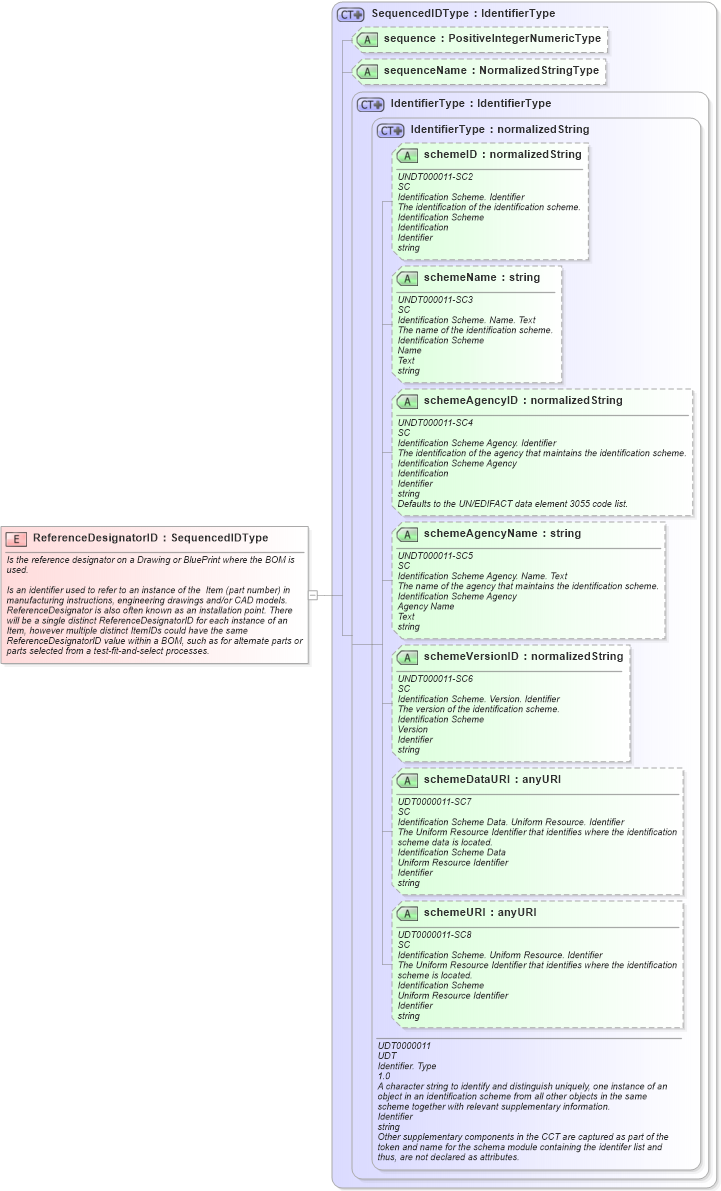

Drilldown into schemeURI in schema unqualifieddatatypes_xsd Drilldown into schemeDataURI in schema unqualifieddatatypes_xsd Drilldown into schemeVersionID in schema unqualifieddatatypes_xsd Drilldown into schemeAgencyName in schema unqualifieddatatypes_xsd Drilldown into schemeAgencyID in schema unqualifieddatatypes_xsd Drilldown into schemeName in schema unqualifieddatatypes_xsd Drilldown into schemeID in schema unqualifieddatatypes_xsd Drilldown into IdentifierType in schema unqualifieddatatypes_xsd Drilldown into IdentifierType in schema fields_xsd1 Drilldown into sequenceName in schema fields_xsd1 Drilldown into sequence in schema fields_xsd1 Drilldown into SequencedIDType in schema fields_xsd1XSD Diagram of ReferenceDesignatorID in schema fields_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="ReferenceDesignatorID" type="SequencedIDType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">Is the reference designator on a Drawing or BluePrint where the BOM is used.

 Is an identifier used to refer to an instance of the  Item (part number) in manufacturing instructions, engineering drawings and/or CAD models. ReferenceDesignator is also often known as an installation point. There will be a single distinct ReferenceDesignatorID for each instance of an Item, however multiple distinct ItemIDs could have the same ReferenceDesignatorID value within a BOM, such as for alternate parts or parts selected from a test-fit-and-select processes. </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
schemeID udt:schemeID Optional
schemeName udt:schemeName Optional
schemeAgencyID udt:schemeAgencyID Optional
schemeAgencyName udt:schemeAgencyName Optional
schemeVersionID udt:schemeVersionID Optional
schemeDataURI udt:schemeDataURI Optional
schemeURI udt:schemeURI Optional
sequence oa:sequence (Optional)
sequenceName oa:sequenceName Optional
