Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: RemunerationRecommendationType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
A recommendation for a pay increase or change in remuneration. This typically would be an output of an appraisal or other performance management process.

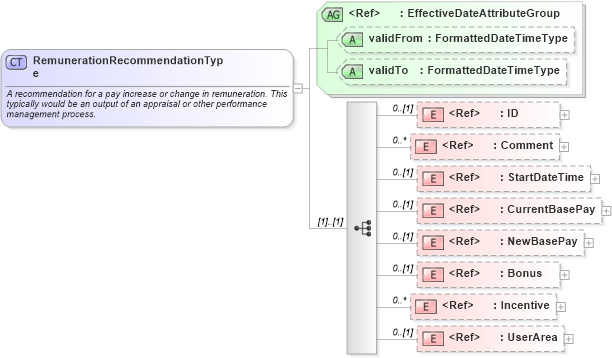

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Incentive in schema components_xsd Drilldown into Bonus in schema components_xsd Drilldown into NewBasePay in schema fields_xsd Drilldown into CurrentBasePay in schema fields_xsd Drilldown into StartDateTime in schema fields_xsd Drilldown into Comment in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of RemunerationRecommendationType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="RemunerationRecommendationType">
    <xsd:annotation>
        <xsd:documentation>A recommendation for a pay increase or change in remuneration. This typically would be an output of an appraisal or other performance management process.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="Comment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="StartDateTime" minOccurs="0" />
        <xsd:element ref="CurrentBasePay" minOccurs="0" />
        <xsd:element ref="NewBasePay" minOccurs="0" />
        <xsd:element ref="Bonus" minOccurs="0" />
        <xsd:element ref="Incentive" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
Comment nsA:Comment 0 unbounded
StartDateTime nsA:StartDateTime 0 (1)
CurrentBasePay nsA:CurrentBasePay 0 (1)
NewBasePay nsA:NewBasePay 0 (1)
Bonus nsA:Bonus 0 (1)
Incentive nsA:Incentive 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:EPMRemunerationType, nsA:RemunerationRecommendation
