Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: RemunerationType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Remuneration Amount. Details Contains a remuneration amount and related metadata, including the interval or basis used to express the pay rate (per hour, day, week, month, etc.) . RemunerationRateIntervalCode is optional. However, it is an HR-XML closed list. If used, values must be implemented without extension or restriction. If a custom code or basis is required, the optional RemunerationRateIntervalCode should be ommited that the custom code expressed within the UserArea.

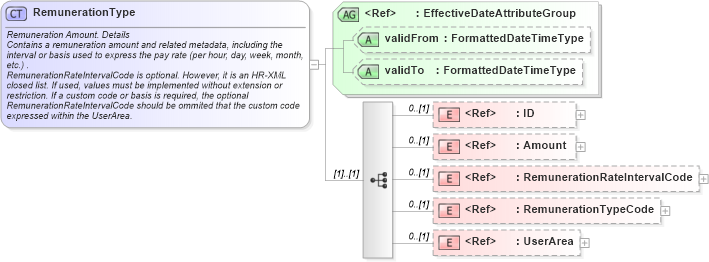

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into RemunerationTypeCode in schema fields_xsd Drilldown into RemunerationRateIntervalCode in schema fields_xsd Drilldown into Amount in schema fields_xsd1 Drilldown into ID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of RemunerationType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="RemunerationType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Remuneration Amount. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Contains a remuneration amount and related metadata, including the interval or basis used to express the pay rate (per hour, day, week, month, etc.) .</ccts:DefinitionText>
            <ccts:UsageRule xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">RemunerationRateIntervalCode is optional. However, it is an HR-XML closed list. If used, values must be implemented without extension or restriction. If a custom code or basis is required, the optional RemunerationRateIntervalCode should be ommited that the custom code expressed within the UserArea.</ccts:UsageRule>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="oa:Amount" minOccurs="0" />
        <xsd:element ref="RemunerationRateIntervalCode" minOccurs="0" />
        <xsd:element ref="RemunerationTypeCode" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
Amount oa:Amount 0 (1)
RemunerationRateIntervalCode nsA:RemunerationRateIntervalCode 0 (1)
RemunerationTypeCode nsA:RemunerationTypeCode 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:EndingRemuneration, nsA:Remuneration, nsA:StartingRemuneration
