Definition Type: ComplexType
Name: RespondAssessmentOrderType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: RespondAssessmentOrder.xsd
Abstract
Documentation:
RespondAssessmentOrder is used to communicate relative to another document, such as a ChangeAssessmentOrder request. It can be used to communicate agreement, questions, answers to a question, or disagreement with the related document. AssessmentOrder Defines a set of information necessary to execute an order for an employment test or assessment.

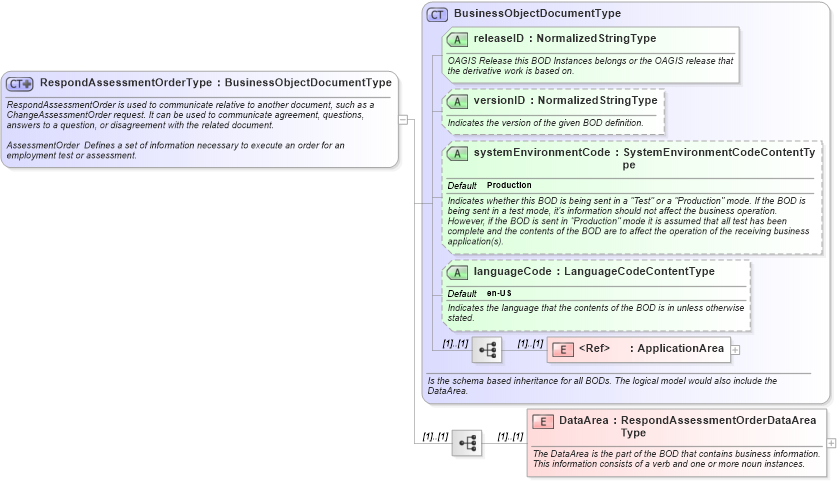

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema respondassessmentorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of RespondAssessmentOrderType in schema respondassessmentorder_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="RespondAssessmentOrderType">
    <xsd:annotation>
        <xsd:documentation>
        RespondAssessmentOrder is used to communicate relative to another document, such as a ChangeAssessmentOrder request. It can be used to communicate agreement, questions, answers to a question, or disagreement with the related document.

       AssessmentOrder  Defines a set of information necessary to execute an order for an employment test or assessment.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="RespondAssessmentOrderDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:RespondAssessmentOrder
