Definition Type: Element
Name: RouteReference
Namespace: http://www.openapplications.org/oagis/9
Type: oa:RouteReferenceType
Containing Schema: Components.xsd
Abstract
Documentation:
Reference to a Routing.

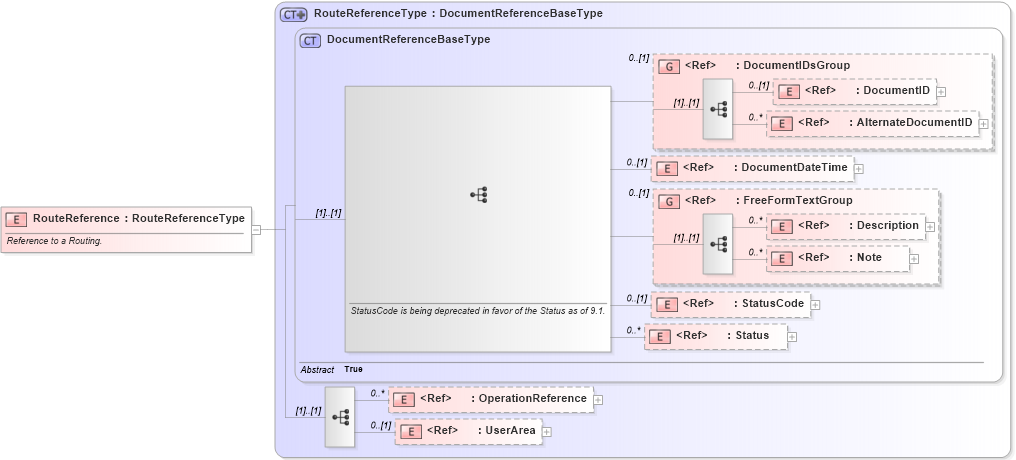

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into OperationReference in schema components_xsd1 Drilldown into Status in schema components_xsd1 Drilldown into StatusCode in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd1 Drilldown into AlternateDocumentID in schema components_xsd1 Drilldown into DocumentID in schema components_xsd1 Drilldown into DocumentIDsGroup in schema components_xsd1 Drilldown into DocumentReferenceBaseType in schema components_xsd1 Drilldown into RouteReferenceType in schema components_xsd1XSD Diagram of RouteReference in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="RouteReference" type="RouteReferenceType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">Reference to a Routing.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID oa:DocumentID 0 (1)
AlternateDocumentID oa:AlternateDocumentID 0 unbounded
DocumentDateTime oa:DocumentDateTime 0 (1)
Description oa:Description 0 unbounded
Note oa:Note 0 unbounded
StatusCode oa:StatusCode 0 (1)
Status oa:Status 0 unbounded
OperationReference oa:OperationReference 0 unbounded
UserArea oa:UserArea 0 (1)
<xs:group> oa:DocumentIDsGroup 0 (1)
<xs:group> oa:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
