Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: SalesActivityType
Namespace: http://www.openapplications.org/oagis/9
Type: oa:SalesActivityBaseType
Containing Schema: CRMComponents.xsd
Abstract

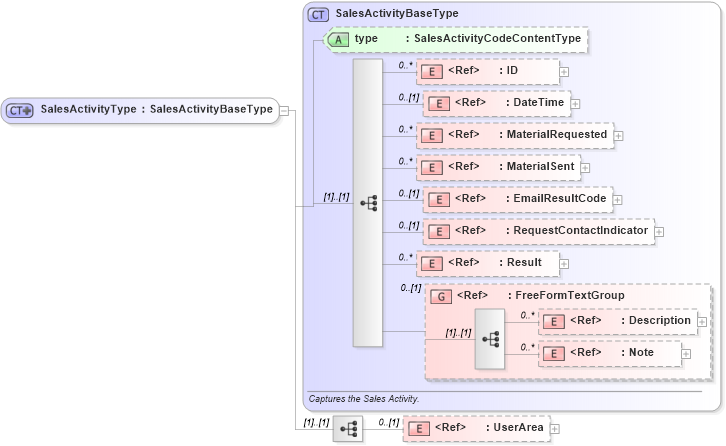

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into Result in schema fields_xsd1 Drilldown into RequestContactIndicator in schema fields_xsd1 Drilldown into EmailResultCode in schema fields_xsd1 Drilldown into MaterialSent in schema fields_xsd1 Drilldown into MaterialRequested in schema fields_xsd1 Drilldown into DateTime in schema fields_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into type in schema crmcomponents_xsd Drilldown into SalesActivityBaseType in schema crmcomponents_xsdXSD Diagram of SalesActivityType in schema crmcomponents_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="SalesActivityType">
    <xsd:complexContent>
        <xsd:extension base="SalesActivityBaseType">
            <xsd:sequence>
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oa:ID 0 unbounded
DateTime oa:DateTime 0 (1)
MaterialRequested oa:MaterialRequested 0 unbounded
MaterialSent oa:MaterialSent 0 unbounded
EmailResultCode oa:EmailResultCode 0 (1)
RequestContactIndicator oa:RequestContactIndicator 0 (1)
Result oa:Result 0 unbounded
Description oa:Description 0 unbounded
Note oa:Note 0 unbounded
UserArea oa:UserArea 0 (1)
<xs:group> oa:FreeFormTextGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type oa:type Optional
Collapse Derivation Tree:
Collapse References:
oa:SalesActivity
