Definition Type: ComplexType
Name: ScheduleType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

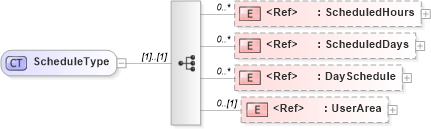

Drilldown into UserArea in schema fields_xsd Drilldown into DaySchedule in schema components_xsd Drilldown into ScheduledDays in schema fields_xsd Drilldown into ScheduledHours in schema fields_xsdXSD Diagram of ScheduleType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ScheduleType">
    <xsd:sequence>
        <xsd:element ref="ScheduledHours" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ScheduledDays" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DaySchedule" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ScheduledHours nsA:ScheduledHours 0 unbounded
ScheduledDays nsA:ScheduledDays 0 unbounded
DaySchedule nsA:DaySchedule 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:Schedule
