Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ScreeningType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

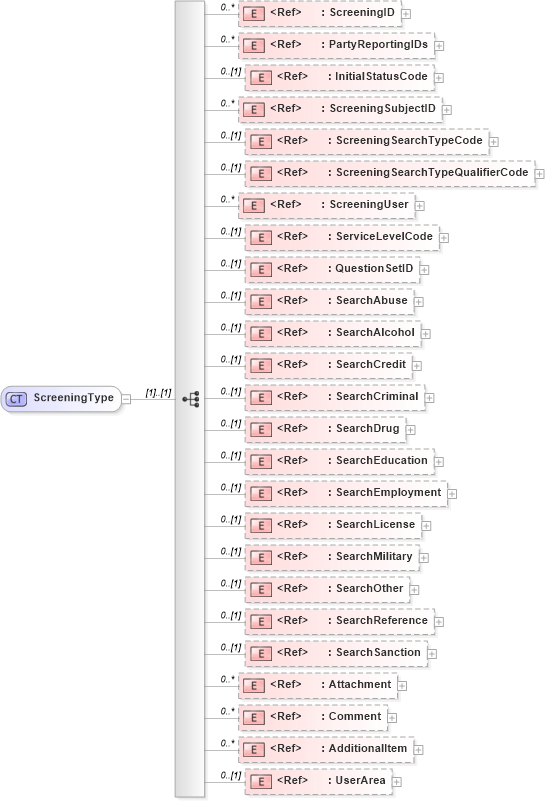

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into AdditionalItem in schema components_xsd Drilldown into Comment in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into SearchSanction in schema components_xsd Drilldown into SearchReference in schema components_xsd Drilldown into SearchOther in schema components_xsd Drilldown into SearchMilitary in schema components_xsd Drilldown into SearchLicense in schema components_xsd Drilldown into SearchEmployment in schema components_xsd Drilldown into SearchEducation in schema components_xsd Drilldown into SearchDrug in schema components_xsd Drilldown into SearchCriminal in schema components_xsd Drilldown into SearchCredit in schema components_xsd Drilldown into SearchAlcohol in schema components_xsd Drilldown into SearchAbuse in schema components_xsd Drilldown into QuestionSetID in schema fields_xsd Drilldown into ServiceLevelCode in schema fields_xsd Drilldown into ScreeningUser in schema components_xsd Drilldown into ScreeningSearchTypeQualifierCode in schema fields_xsd Drilldown into ScreeningSearchTypeCode in schema fields_xsd Drilldown into ScreeningSubjectID in schema fields_xsd Drilldown into InitialStatusCode in schema fields_xsd Drilldown into PartyReportingIDs in schema components_xsd Drilldown into ScreeningID in schema fields_xsdXSD Diagram of ScreeningType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ScreeningType">
    <xsd:sequence>
        <xsd:element ref="ScreeningID" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
Example Usage:
Screening/ID
              agencyRole = Requester
              schemeAgencyID = PeopleClick
 Screening/ID
              agencyRole = Supplier
              schemeAgencyID = FirstAdvantage
Screening/ID
              agencyRole = Customer
              schemeAgencyID = Acme Corp
</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="PartyReportingIDs" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="InitialStatusCode" minOccurs="0" />
        <xsd:element ref="ScreeningSubjectID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ScreeningSearchTypeCode" minOccurs="0" />
        <xsd:element ref="ScreeningSearchTypeQualifierCode" minOccurs="0" />
        <xsd:element ref="ScreeningUser" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ServiceLevelCode" minOccurs="0" />
        <xsd:element ref="QuestionSetID" minOccurs="0" />
        <xsd:element ref="SearchAbuse" minOccurs="0" />
        <xsd:element ref="SearchAlcohol" minOccurs="0" />
        <xsd:element ref="SearchCredit" minOccurs="0" />
        <xsd:element ref="SearchCriminal" minOccurs="0" />
        <xsd:element ref="SearchDrug" minOccurs="0" />
        <xsd:element ref="SearchEducation" minOccurs="0" />
        <xsd:element ref="SearchEmployment" minOccurs="0" />
        <xsd:element ref="SearchLicense" minOccurs="0" />
        <xsd:element ref="SearchMilitary" minOccurs="0" />
        <xsd:element ref="SearchOther" minOccurs="0" />
        <xsd:element ref="SearchReference" minOccurs="0" />
        <xsd:element ref="SearchSanction" minOccurs="0" />
        <xsd:element ref="Attachment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Comment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
        <!-- Generally one SearchType per ScreeningDetails. Presented in sequence, versus choice for simplicity and tool compatibility. -->
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ScreeningID nsA:ScreeningID 0 unbounded
PartyReportingIDs nsA:PartyReportingIDs 0 unbounded
InitialStatusCode nsA:InitialStatusCode 0 (1)
ScreeningSubjectID nsA:ScreeningSubjectID 0 unbounded
ScreeningSearchTypeCode nsA:ScreeningSearchTypeCode 0 (1)
ScreeningSearchTypeQualifierCode nsA:ScreeningSearchTypeQualifierCode 0 (1)
ScreeningUser nsA:ScreeningUser 0 unbounded
ServiceLevelCode nsA:ServiceLevelCode 0 (1)
QuestionSetID nsA:QuestionSetID 0 (1)
SearchAbuse nsA:SearchAbuse 0 (1)
SearchAlcohol nsA:SearchAlcohol 0 (1)
SearchCredit nsA:SearchCredit 0 (1)
SearchCriminal nsA:SearchCriminal 0 (1)
SearchDrug nsA:SearchDrug 0 (1)
SearchEducation nsA:SearchEducation 0 (1)
SearchEmployment nsA:SearchEmployment 0 (1)
SearchLicense nsA:SearchLicense 0 (1)
SearchMilitary nsA:SearchMilitary 0 (1)
SearchOther nsA:SearchOther 0 (1)
SearchReference nsA:SearchReference 0 (1)
SearchSanction nsA:SearchSanction 0 (1)
Attachment nsA:Attachment 0 unbounded
Comment nsA:Comment 0 unbounded
AdditionalItem nsA:AdditionalItem 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:Screening
