Definition Type: ComplexType
Name: SearchAlcoholType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

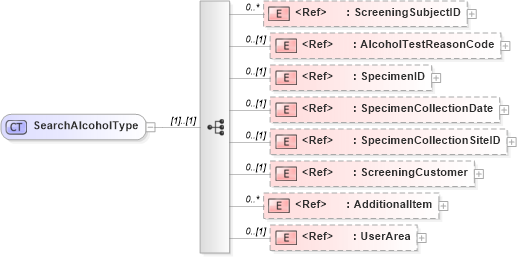

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into AdditionalItem in schema components_xsd Drilldown into ScreeningCustomer in schema components_xsd Drilldown into SpecimenCollectionSiteID in schema fields_xsd Drilldown into SpecimenCollectionDate in schema fields_xsd Drilldown into SpecimenID in schema fields_xsd Drilldown into AlcoholTestReasonCode in schema fields_xsd Drilldown into ScreeningSubjectID in schema fields_xsdXSD Diagram of SearchAlcoholType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="SearchAlcoholType">
    <xsd:sequence>
        <xsd:element ref="ScreeningSubjectID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AlcoholTestReasonCode" minOccurs="0" />
        <xsd:element ref="SpecimenID" minOccurs="0" />
        <xsd:element ref="SpecimenCollectionDate" minOccurs="0" />
        <xsd:element ref="SpecimenCollectionSiteID" minOccurs="0" />
        <xsd:element ref="ScreeningCustomer" minOccurs="0" />
        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ScreeningSubjectID nsA:ScreeningSubjectID 0 unbounded
AlcoholTestReasonCode nsA:AlcoholTestReasonCode 0 (1)
SpecimenID nsA:SpecimenID 0 (1)
SpecimenCollectionDate nsA:SpecimenCollectionDate 0 (1)
SpecimenCollectionSiteID nsA:SpecimenCollectionSiteID 0 (1)
ScreeningCustomer nsA:ScreeningCustomer 0 (1)
AdditionalItem nsA:AdditionalItem 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:SearchAlcohol
