Definition Type: ComplexType
Name: SearchCreditType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

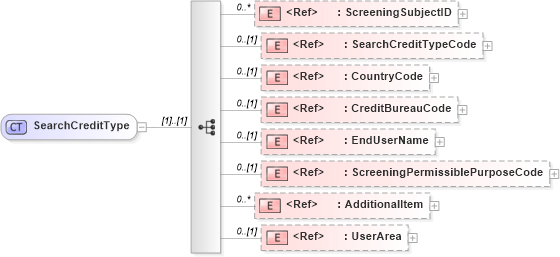

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into AdditionalItem in schema components_xsd Drilldown into ScreeningPermissiblePurposeCode in schema fields_xsd Drilldown into EndUserName in schema fields_xsd Drilldown into CreditBureauCode in schema fields_xsd Drilldown into CountryCode in schema fields_xsd Drilldown into SearchCreditTypeCode in schema fields_xsd Drilldown into ScreeningSubjectID in schema fields_xsdXSD Diagram of SearchCreditType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="SearchCreditType">
    <xsd:sequence>
        <xsd:element ref="ScreeningSubjectID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SearchCreditTypeCode" minOccurs="0" />
        <xsd:element ref="CountryCode" minOccurs="0" />
        <xsd:element ref="CreditBureauCode" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">Uniquely distinquishes the credit bureau or consumer report agency. For example, Experian, Transunion, etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="EndUserName" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">Credit searches may require the name of the end user or party requesting or applying the search.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ScreeningPermissiblePurposeCode" minOccurs="0" />
        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ScreeningSubjectID nsA:ScreeningSubjectID 0 unbounded
SearchCreditTypeCode nsA:SearchCreditTypeCode 0 (1)
CountryCode nsA:CountryCode 0 (1)
CreditBureauCode nsA:CreditBureauCode 0 (1)
EndUserName nsA:EndUserName 0 (1)
ScreeningPermissiblePurposeCode nsA:ScreeningPermissiblePurposeCode 0 (1)
AdditionalItem nsA:AdditionalItem 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:SearchCredit
