Definition Type: ComplexType
Name: SerializedLotType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

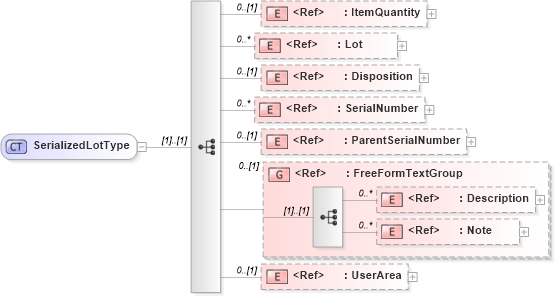

Drilldown into UserArea in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ParentSerialNumber in schema fields_xsd1 Drilldown into SerialNumber in schema fields_xsd1 Drilldown into Disposition in schema components_xsd1 Drilldown into Lot in schema components_xsd1 Drilldown into ItemQuantity in schema fields_xsd1XSD Diagram of SerializedLotType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="SerializedLotType">
    <xsd:sequence>
        <xsd:element ref="ItemQuantity" minOccurs="0" />
        <xsd:element ref="Lot" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/platform/1">Indicates the Lot associated with the LotSerial.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Disposition" minOccurs="0" />
        <xsd:element ref="SerialNumber" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ParentSerialNumber" minOccurs="0" />
        <xsd:group ref="FreeFormTextGroup" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemQuantity oa:ItemQuantity 0 (1)
Lot oa:Lot 0 unbounded
Disposition oa:Disposition 0 (1)
SerialNumber oa:SerialNumber 0 unbounded
ParentSerialNumber oa:ParentSerialNumber 0 (1)
Description oa:Description 0 unbounded
Note oa:Note 0 unbounded
UserArea oa:UserArea 0 (1)
<xs:group> oa:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:SerializedLot
