Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: Shift
Namespace: http://www.hr-xml.org/3
Type: nsA:ShiftType
Containing Schema: Components.xsd
Abstract

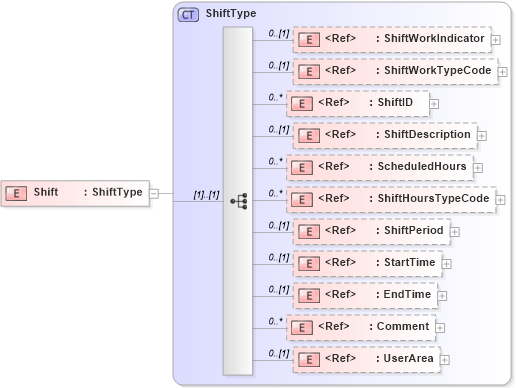

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Comment in schema fields_xsd Drilldown into EndTime in schema fields_xsd Drilldown into StartTime in schema fields_xsd Drilldown into ShiftPeriod in schema fields_xsd Drilldown into ShiftHoursTypeCode in schema fields_xsd Drilldown into ScheduledHours in schema fields_xsd Drilldown into ShiftDescription in schema fields_xsd Drilldown into ShiftID in schema fields_xsd Drilldown into ShiftWorkTypeCode in schema fields_xsd Drilldown into ShiftWorkIndicator in schema fields_xsd Drilldown into ShiftType in schema components_xsdXSD Diagram of Shift in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Shift" type="ShiftType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ShiftWorkIndicator nsA:ShiftWorkIndicator 0 (1)
ShiftWorkTypeCode nsA:ShiftWorkTypeCode 0 (1)
ShiftID nsA:ShiftID 0 unbounded
ShiftDescription nsA:ShiftDescription 0 (1)
ScheduledHours nsA:ScheduledHours 0 unbounded
ShiftHoursTypeCode nsA:ShiftHoursTypeCode 0 unbounded
ShiftPeriod nsA:ShiftPeriod 0 (1)
StartTime nsA:StartTime 0 (1)
EndTime nsA:EndTime 0 (1)
Comment nsA:Comment 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
