Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: ShipmentUnitContainer
Namespace: http://www.openapplications.org/oagis/9
Type: oa:ShipmentUnitContainerType
Containing Schema: LogisticsComponents.xsd
Abstract
Documentation:
The ShipmentUnitContainer represents information about an intermediate packaging level within the shipping unit. A ShipmentUnitContainer may or may not have ShipmentUnitItem associated with it

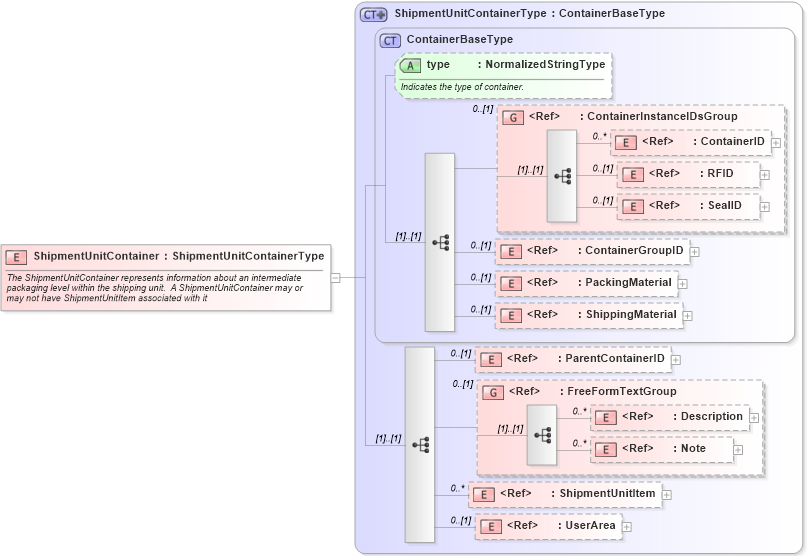

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into ShipmentUnitItem in schema logisticscomponents_xsd Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ParentContainerID in schema fields_xsd1 Drilldown into ShippingMaterial in schema components_xsd1 Drilldown into PackingMaterial in schema components_xsd1 Drilldown into ContainerGroupID in schema fields_xsd1 Drilldown into SealID in schema fields_xsd1 Drilldown into RFID in schema fields_xsd1 Drilldown into ContainerID in schema fields_xsd1 Drilldown into ContainerInstanceIDsGroup in schema logisticscomponents_xsd Drilldown into type in schema logisticscomponents_xsd Drilldown into ContainerBaseType in schema logisticscomponents_xsd Drilldown into ShipmentUnitContainerType in schema logisticscomponents_xsdXSD Diagram of ShipmentUnitContainer in schema logisticscomponents_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="ShipmentUnitContainer" type="ShipmentUnitContainerType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">The ShipmentUnitContainer represents information about an intermediate packaging level within the shipping unit.  A ShipmentUnitContainer may or may not have ShipmentUnitItem associated with it</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ContainerID oa:ContainerID 0 unbounded
RFID oa:RFID 0 (1)
SealID oa:SealID 0 (1)
ContainerGroupID oa:ContainerGroupID 0 (1)
PackingMaterial oa:PackingMaterial 0 (1)
ShippingMaterial oa:ShippingMaterial 0 (1)
ParentContainerID oa:ParentContainerID 0 (1)
Description oa:Description 0 unbounded
Note oa:Note 0 unbounded
ShipmentUnitItem oa:ShipmentUnitItem 0 unbounded
UserArea oa:UserArea 0 (1)
<xs:group> oa:ContainerInstanceIDsGroup 0 (1)
<xs:group> oa:FreeFormTextGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type oa:type (Optional)
Collapse Derivation Tree:
