Definition Type: Group
Name: ShippingWeightAndVolumeGroup
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Collapse XSD Schema Diagram:

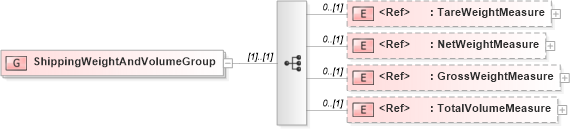

Drilldown into TotalVolumeMeasure in schema fields_xsd1 Drilldown into GrossWeightMeasure in schema fields_xsd1 Drilldown into NetWeightMeasure in schema fields_xsd1 Drilldown into TareWeightMeasure in schema fields_xsd1XSD Diagram of ShippingWeightAndVolumeGroup in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:group name="ShippingWeightAndVolumeGroup">
    <xsd:sequence>
        <xsd:element ref="TareWeightMeasure" minOccurs="0" />
        <xsd:element ref="NetWeightMeasure" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/platform/1">This is the net weight of the goods or materials being shipped.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="GrossWeightMeasure" minOccurs="0" />
        <xsd:element ref="TotalVolumeMeasure" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/platform/1">Quantifies the volume, or amount of space, that is occupied by an item, container or shipment.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TareWeightMeasure oa:TareWeightMeasure 0 (1)
NetWeightMeasure oa:NetWeightMeasure 0 (1)
GrossWeightMeasure oa:GrossWeightMeasure 0 (1)
TotalVolumeMeasure oa:TotalVolumeMeasure 0 (1)
