Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: ShipUnitTotalID
Namespace: http://www.openapplications.org/oagis/9
Type: oa:IdentifierType
Containing Schema: Fields.xsd
Abstract
Documentation:
In a set of similar shipping units for a delivery, ShipUnitTotalId represents the total or final unit in the set. When used in conjunction with ShipUnitSequenceId and printed on a shipping unit label or packing list, the receiving partner can easily ascertain whether or not the delivery was complete.

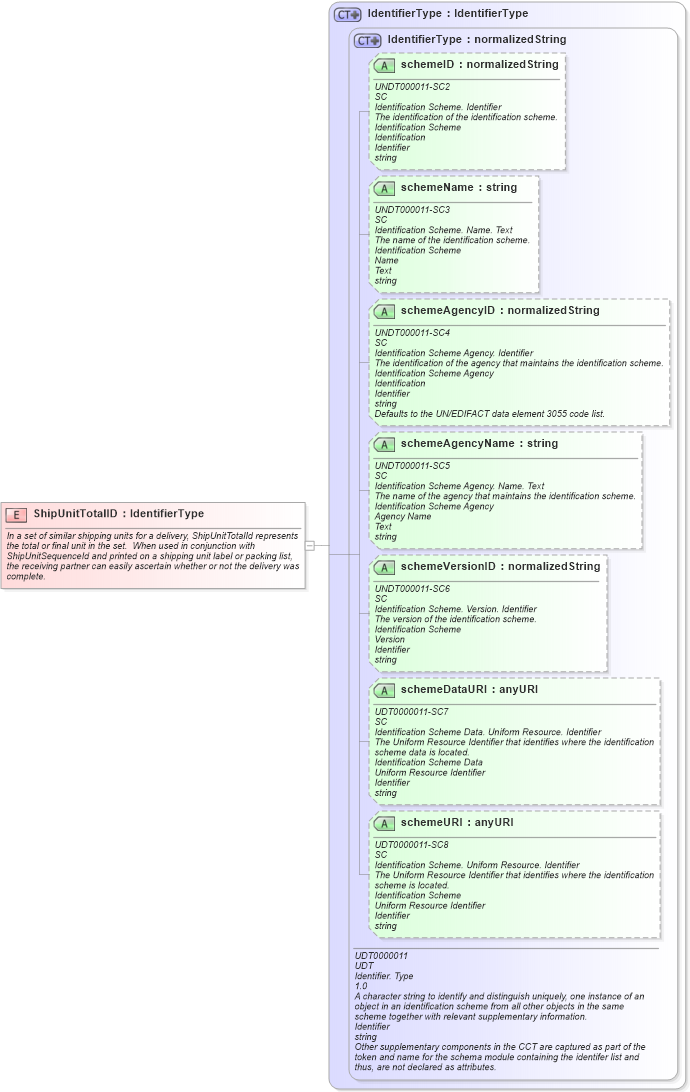

Collapse XSD Schema Diagram:
Drilldown into schemeURI in schema unqualifieddatatypes_xsd Drilldown into schemeDataURI in schema unqualifieddatatypes_xsd Drilldown into schemeVersionID in schema unqualifieddatatypes_xsd Drilldown into schemeAgencyName in schema unqualifieddatatypes_xsd Drilldown into schemeAgencyID in schema unqualifieddatatypes_xsd Drilldown into schemeName in schema unqualifieddatatypes_xsd Drilldown into schemeID in schema unqualifieddatatypes_xsd Drilldown into IdentifierType in schema unqualifieddatatypes_xsd Drilldown into IdentifierType in schema fields_xsd1XSD Diagram of ShipUnitTotalID in schema fields_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="ShipUnitTotalID" type="IdentifierType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">In a set of similar shipping units for a delivery, ShipUnitTotalId represents the total or final unit in the set.  When used in conjunction with ShipUnitSequenceId and printed on a shipping unit label or packing list, the receiving partner can easily ascertain whether or not the delivery was complete.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
schemeID udt:schemeID Optional
schemeName udt:schemeName Optional
schemeAgencyID udt:schemeAgencyID Optional
schemeAgencyName udt:schemeAgencyName Optional
schemeVersionID udt:schemeVersionID Optional
schemeDataURI udt:schemeDataURI Optional
schemeURI udt:schemeURI Optional
Collapse Derivation Tree:
Documentation for HR-XML - Human Resources XML

Generated using Liquid Studio - Developer Bundle 21.0.0.0
