Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ShowDevelopmentPlanType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: ShowDevelopmentPlan.xsd
Abstract
Documentation:
ShowDevelopmentPlan is used to send a specific piece of existing DevelopmentPlan data in response to a GetDevelopmentPlan request. DevelopmentPlan Supports the communication of a training or development plan. A common use might be the transfer of training or learning information from a performance management system to a learning management system. May include references to associated learning objects (courses, developmental tools, etc.) and objectives or achievement standards. Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.

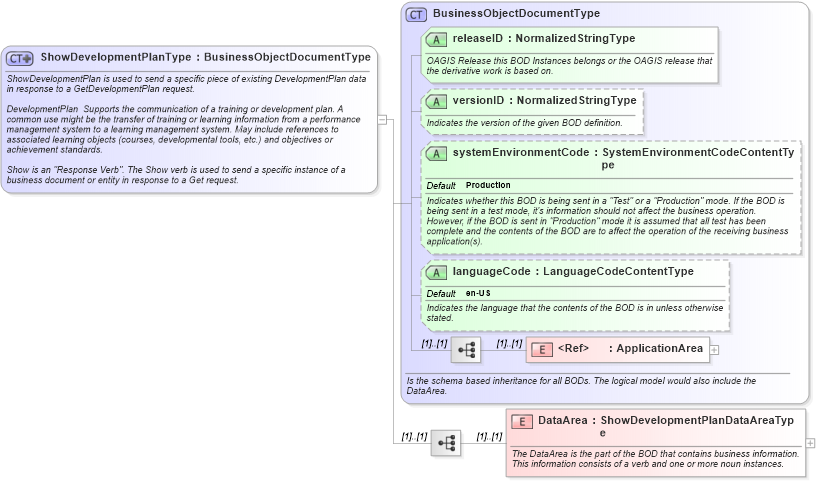

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema showdevelopmentplan_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of ShowDevelopmentPlanType in schema showdevelopmentplan_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ShowDevelopmentPlanType">
    <xsd:annotation>
        <xsd:documentation>
        ShowDevelopmentPlan is used to send a specific piece of existing DevelopmentPlan data in response to a GetDevelopmentPlan request.

       DevelopmentPlan  Supports the communication of a training or development plan. A common use might be the transfer of training or learning information from a performance management system to a learning management system. May include references to associated learning objects (courses, developmental tools, etc.) and objectives or achievement standards.

       Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="ShowDevelopmentPlanDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:ShowDevelopmentPlan
