Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ShowHRMasterDataType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: ShowHRMasterData.xsd
Abstract
Documentation:
ShowHRMasterData is used to send a specific piece of existing HRMasterData data in response to a GetHRMasterData request. HRMasterData Contains a broad set of information about a human resource. HRMasterData is not limited to a particular domain (for example, EPMParticipant and IndicativeData). Used to provision or synchronize data between and among HR systems. Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.

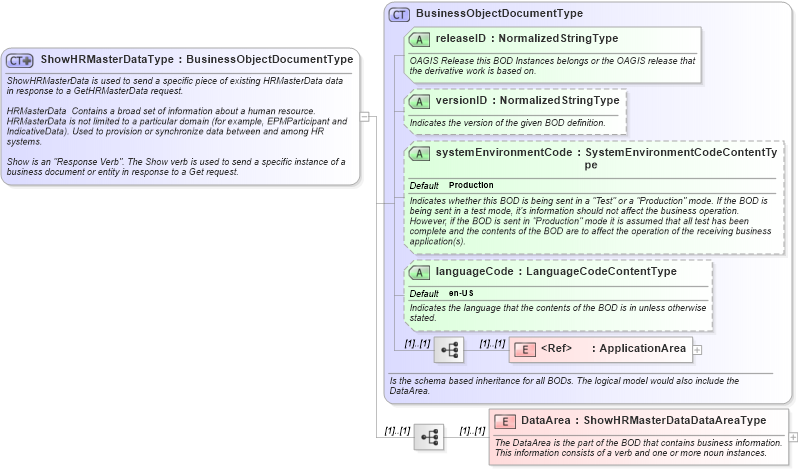

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema showhrmasterdata_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of ShowHRMasterDataType in schema showhrmasterdata_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ShowHRMasterDataType">
    <xsd:annotation>
        <xsd:documentation>
        ShowHRMasterData is used to send a specific piece of existing HRMasterData data in response to a GetHRMasterData request.

       HRMasterData  Contains a broad set of information about a human resource. HRMasterData is not limited to a particular domain (for example, EPMParticipant and IndicativeData). Used to provision or synchronize data between and among HR systems.

       Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="ShowHRMasterDataDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:ShowHRMasterData
