Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ShowIndicativeDataType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: ShowIndicativeData.xsd
Abstract
Documentation:
ShowIndicativeData is used to send a specific piece of existing IndicativeData data in response to a GetIndicativeData request. IndicativeData Defines a set of data about the relationship between an employer and employee or former employee that is relevant to the provisioning of outsourced benefits and payroll systems. It is "indicative" data in that the target system has business rules and logic to administer the employee's compensation and/or benefits programs based on the data supplied. OED Indicative n. That points out, states, or declares; That indicates, points out, or directs; that hints or suggests; Furnishing indications of; suggestive of. Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.

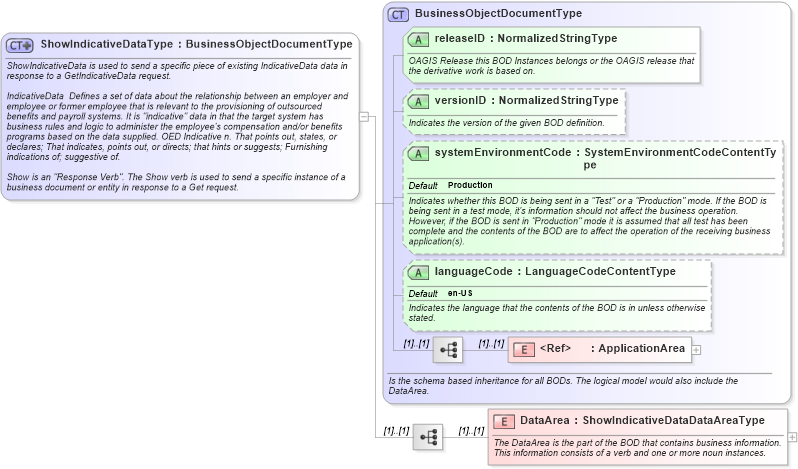

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema showindicativedata_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of ShowIndicativeDataType in schema showindicativedata_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ShowIndicativeDataType">
    <xsd:annotation>
        <xsd:documentation>
        ShowIndicativeData is used to send a specific piece of existing IndicativeData data in response to a GetIndicativeData request.

       IndicativeData  Defines a set of data about the relationship between an employer and employee or former employee that is relevant to the provisioning of outsourced benefits and payroll systems. It is "indicative" data in that the target system has business rules and logic to administer the employee's compensation and/or benefits programs based on the data supplied. OED Indicative n. That points out, states, or declares; That indicates, points out, or directs; that hints or suggests; Furnishing indications of; suggestive of.

       Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="ShowIndicativeDataDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:ShowIndicativeData
