Definition Type: ComplexType
Name: ShowOrganizationChartType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: ShowOrganizationChart.xsd
Abstract
Documentation:
ShowOrganizationChart is used to send a specific piece of existing OrganizationChart data in response to a GetOrganizationChart request. OrganizationChart Provides a simple, "open model" structure for communicating basic information about an organization, its sub-entities or "organization units," the positions within those units, and the incumbents within those positions. The schema design is "flat" versus recursive in design, but hierarchy and reporting relationships can be expressed. Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.
Collapse XSD Schema Diagram:

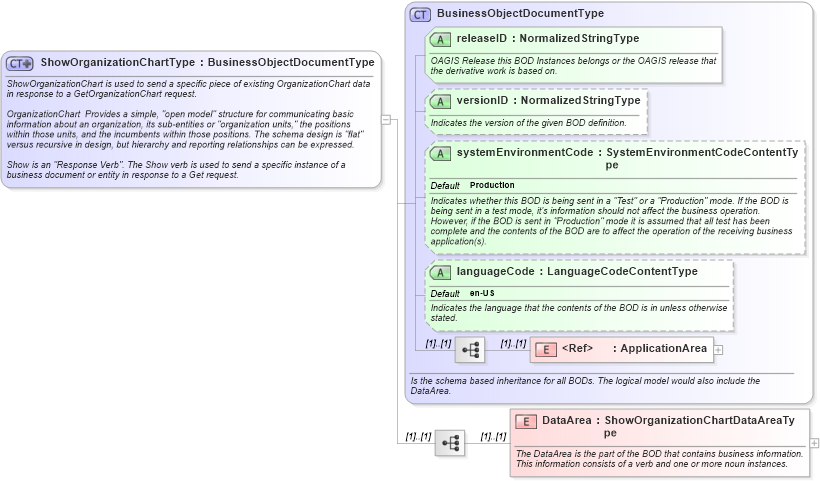

Drilldown into DataArea in schema showorganizationchart_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of ShowOrganizationChartType in schema showorganizationchart_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ShowOrganizationChartType">
    <xsd:annotation>
        <xsd:documentation>
        ShowOrganizationChart is used to send a specific piece of existing OrganizationChart data in response to a GetOrganizationChart request.

       OrganizationChart  Provides a simple, "open model" structure for communicating basic information about an organization, its sub-entities or "organization units," the positions within those units, and the incumbents within those positions. The schema design is "flat" versus recursive in design, but hierarchy and reporting relationships can be expressed.

       Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="ShowOrganizationChartDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:ShowOrganizationChart
