Definition Type: ComplexType
Name: ShowScreeningOrderType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: ShowScreeningOrder.xsd
Abstract
Documentation:
ShowScreeningOrder is used to send a specific piece of existing ScreeningOrder data in response to a GetScreeningOrder request. ScreeningOrder Contains a set of information necessary to submit or administer screening requests to employment-screening service providers. Examples of screenings are searches of criminal records, education, employment, military service, professional licenses, professional sanctions, and credit. Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.

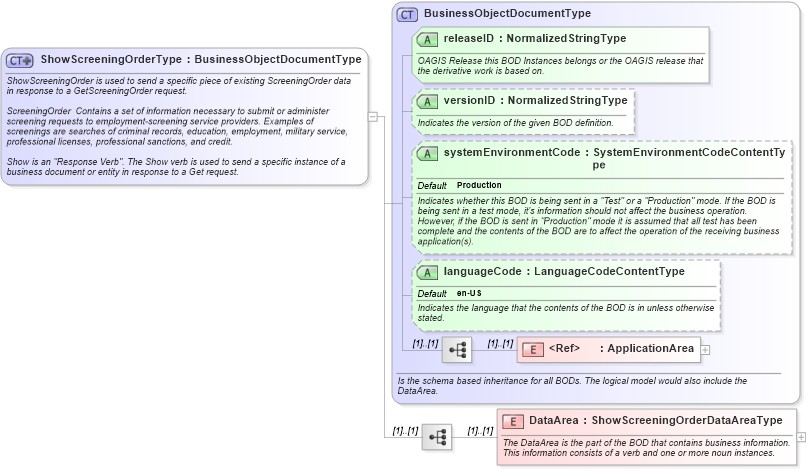

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema showscreeningorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of ShowScreeningOrderType in schema showscreeningorder_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ShowScreeningOrderType">
    <xsd:annotation>
        <xsd:documentation>
        ShowScreeningOrder is used to send a specific piece of existing ScreeningOrder data in response to a GetScreeningOrder request.

       ScreeningOrder  Contains a set of information necessary to submit or administer screening requests to employment-screening service providers. Examples of screenings are searches of criminal records, education, employment, military service, professional licenses, professional sanctions, and credit.

       Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="ShowScreeningOrderDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:ShowScreeningOrder
