Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ShowScreeningPackageOrderType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: ShowScreeningPackageOrder.xsd
Abstract
Documentation:
ShowScreeningPackageOrder is used to send a specific piece of existing ScreeningPackageOrder data in response to a GetScreeningPackageOrder request. ScreeningPackageOrder This is a subset of the full ScreeningOrder. It is intended to support an "OrderByPackageID" scenario. As the name implies, the "order by package" pattern involves bundling all screening service options within predefined packages that are known to the customer and to the screening provider. This enables services to be ordered simply by referencing an associated "PackageID." When using this pattern, details about specific screening services do not have to be communicated within the order. This simplifies order creation significantly and provides the opportunity to use an interoperable subset of the full ScreeningOrder noun. Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.

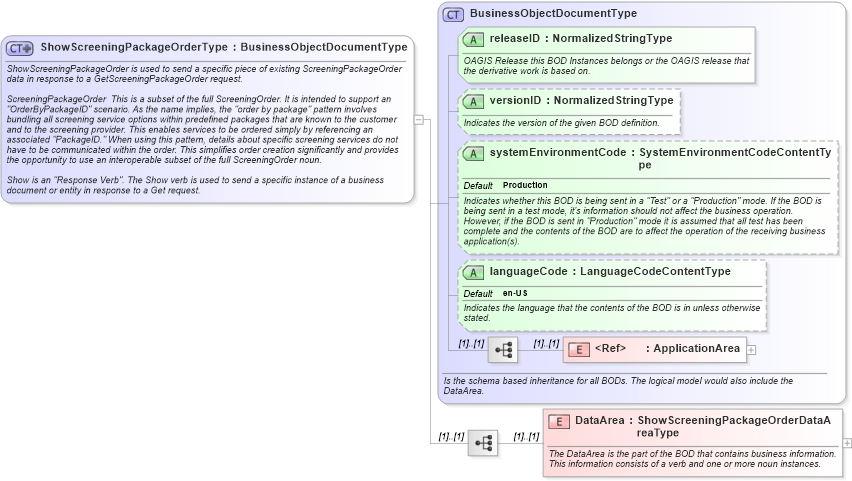

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema showscreeningpackageorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of ShowScreeningPackageOrderType in schema showscreeningpackageorder_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ShowScreeningPackageOrderType">
    <xsd:annotation>
        <xsd:documentation>
        ShowScreeningPackageOrder is used to send a specific piece of existing ScreeningPackageOrder data in response to a GetScreeningPackageOrder request.

       ScreeningPackageOrder  This is a subset of the full ScreeningOrder. It is intended to support an "OrderByPackageID" scenario. As the name implies, the "order by package" pattern involves bundling all screening service options within predefined packages that are known to the customer and to the screening provider. This enables services to be ordered simply by referencing an associated "PackageID." When using this pattern, details about specific screening services do not have to be communicated within the order. This simplifies order creation significantly and provides the opportunity to use an interoperable subset of the full ScreeningOrder noun.

       Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="ShowScreeningPackageOrderDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:ShowScreeningPackageOrder
