Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ShowStaffingOrderType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: ShowStaffingOrder.xsd
Abstract
Documentation:
ShowStaffingOrder is used to send a specific piece of existing StaffingOrder data in response to a GetStaffingOrder request. StaffingOrder Contains a set of information sufficient to place and manage an order with a staffng supplier. Can also be used in "request for quote" (RFQ) operations underwhich a customer seeks pricing and offer information from a supplier in connection with a "requisition." A staffing requisition (a statement of staffing resource requirements) is a component of an order. Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.

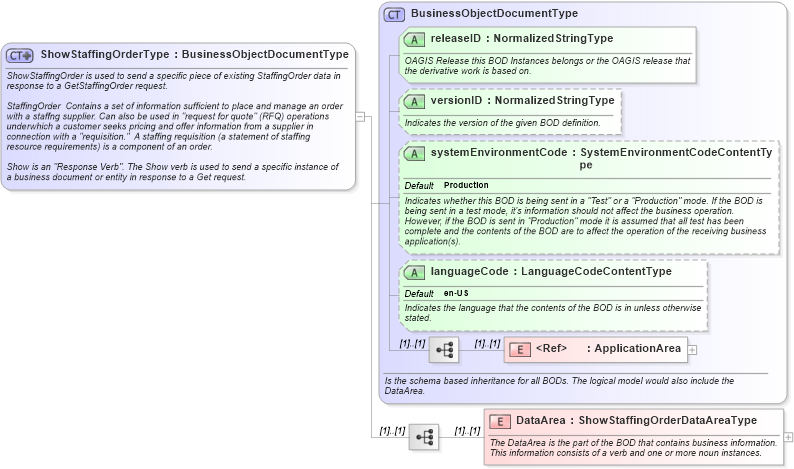

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema showstaffingorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of ShowStaffingOrderType in schema showstaffingorder_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ShowStaffingOrderType">
    <xsd:annotation>
        <xsd:documentation>
        ShowStaffingOrder is used to send a specific piece of existing StaffingOrder data in response to a GetStaffingOrder request.

       StaffingOrder  Contains a set of information sufficient to place and manage an order with a staffng supplier. Can also be used in "request for quote" (RFQ) operations underwhich a customer seeks pricing and offer information from a supplier in connection with a "requisition."  A staffing requisition (a statement of staffing resource requirements) is a component of an order.

       Show is an "Response Verb". The Show verb is used to send a specific instance of a business document or entity in response to a Get request.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="ShowStaffingOrderDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:ShowStaffingOrder
