Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: SocialInsuranceType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

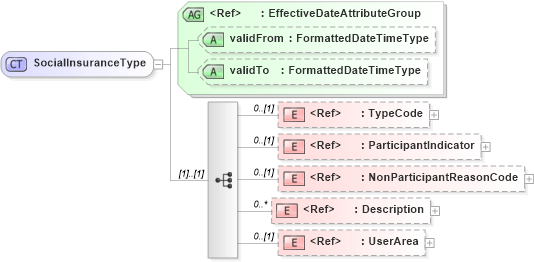

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Description in schema fields_xsd1 Drilldown into NonParticipantReasonCode in schema fields_xsd Drilldown into ParticipantIndicator in schema fields_xsd Drilldown into TypeCode in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of SocialInsuranceType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="SocialInsuranceType">
    <xsd:sequence>
        <xsd:element ref="TypeCode" minOccurs="0" />
        <xsd:element ref="ParticipantIndicator" minOccurs="0" />
        <xsd:element ref="NonParticipantReasonCode" minOccurs="0" />
        <xsd:element ref="oa:Description" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TypeCode nsA:TypeCode 0 (1)
ParticipantIndicator nsA:ParticipantIndicator 0 (1)
NonParticipantReasonCode nsA:NonParticipantReasonCode 0 (1)
Description oa:Description 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:SocialInsurance
