Definition Type: ComplexType
Name: StackRankType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
A "stack rank" refers to a unique cardinal position for each person within a designated comparison group. "Stack ranking" also sometimes is referred to as "forced ranking". Within HR-XML’s data model, a stack rank is an optional component within “Overall Rating”

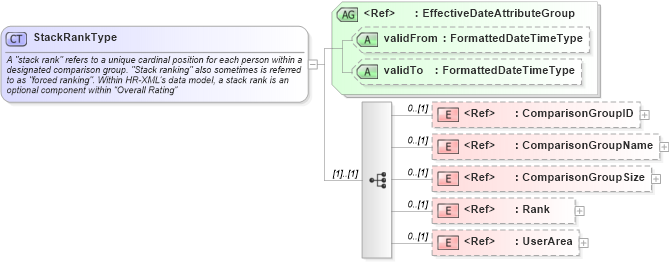

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Rank in schema fields_xsd Drilldown into ComparisonGroupSize in schema fields_xsd Drilldown into ComparisonGroupName in schema fields_xsd Drilldown into ComparisonGroupID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of StackRankType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="StackRankType">
    <xsd:annotation>
        <xsd:documentation>A "stack rank" refers to a unique cardinal position for each person within a designated comparison group. "Stack ranking" also sometimes is referred to as "forced ranking". Within HR-XML’s data model, a stack rank is an optional component within “Overall Rating”</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ComparisonGroupID" minOccurs="0" />
        <xsd:element ref="ComparisonGroupName" minOccurs="0" />
        <xsd:element ref="ComparisonGroupSize" minOccurs="0" />
        <xsd:element ref="Rank" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ComparisonGroupID nsA:ComparisonGroupID 0 (1)
ComparisonGroupName nsA:ComparisonGroupName 0 (1)
ComparisonGroupSize nsA:ComparisonGroupSize 0 (1)
Rank nsA:Rank 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:StackRank
