Definition Type: ComplexType
Name: StatusBasisType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Meta.xsd
Abstract

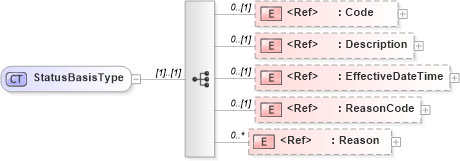

Collapse XSD Schema Diagram:
Drilldown into Reason in schema fields_xsd1 Drilldown into ReasonCode in schema fields_xsd1 Drilldown into EffectiveDateTime in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into Code in schema fields_xsd1XSD Diagram of StatusBasisType in schema meta_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="StatusBasisType">
    <xsd:sequence>
        <xsd:element ref="Code" minOccurs="0" />
        <xsd:element ref="Description" minOccurs="0" />
        <xsd:element ref="EffectiveDateTime" minOccurs="0" />
        <xsd:element ref="ReasonCode" minOccurs="0" />
        <xsd:element ref="Reason" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code oa:Code 0 (1)
Description oa:Description 0 (1)
EffectiveDateTime oa:EffectiveDateTime 0 (1)
ReasonCode oa:ReasonCode 0 (1)
Reason oa:Reason 0 unbounded
Collapse Derivation Tree:
Collapse References:
oa:ChangeStatusTypeoa:StatusABIEType,
